Corrugated Pliable Tubes

SKU: OPCT

$0,00

Click here for price request or more info.
Material: PVC / PE,PP (on request)
Compression Resistance: 320 / 750 Newton
Impact Resistance: 1kg. / 2kg.
Insulation Resistance: 200 V.
Temp range: -20°C till +90°C
Main usage: Electrical Installations, Public
buildings,Construction, Industries where high
mechanical protection is required
Colors: Any color available upon request

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Code Nominal Size Size (mm.) Coil Length (mt.)
320N 750N Inner Outer
OLSPCT16 OHSPCT16 16 11,2 16 100
OLSPCT20 OHSPCT20 20 14,5 20 100
OLSPCT25 OHSPCT25 25 18,5 25 50
OLSPCT32 OHSPCT32 32 24,5 32 50
OLSPCT40 OHSPCT40 40 31,2 40 50
OLSPCT50 OHSPCT50 50 39,6 50 25
  • This product can also be supplied with a draw wire. Please add “dw” after part code

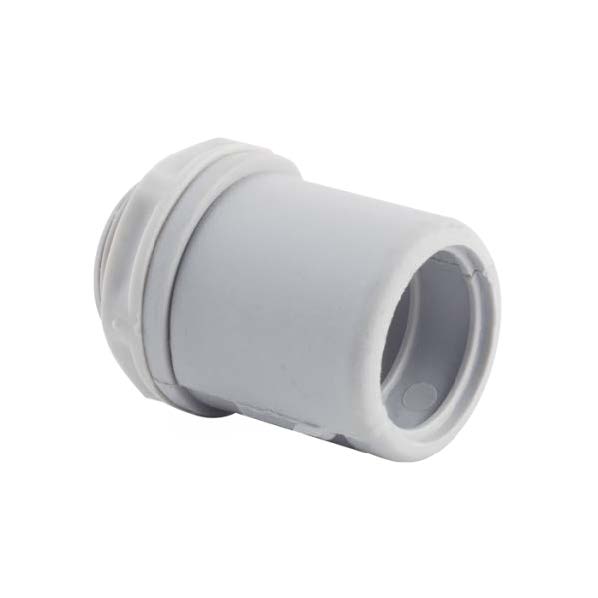

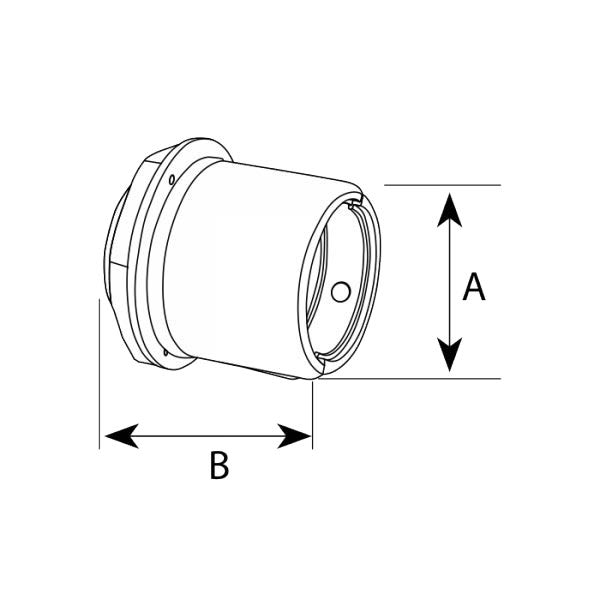

Corrugated Conduit Glands

Code Size Size (mm.)
A B
OCTG16 16 16 30
OCTG20 20 20 35
OCTG25 25 25 43
OCTG32 32 32 50
OCTG40 40 40
OCTG50 50 50
