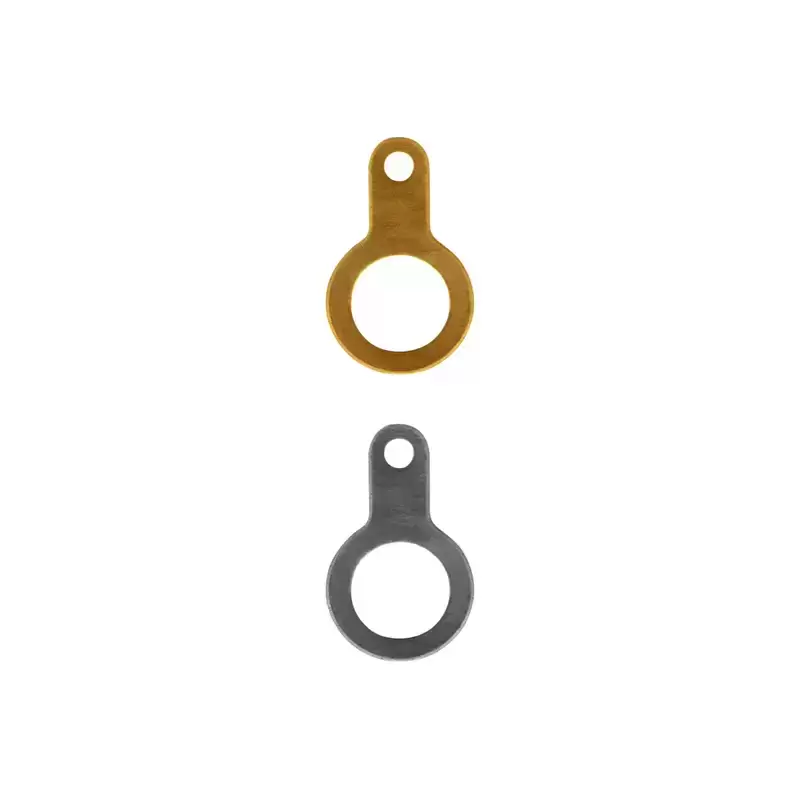

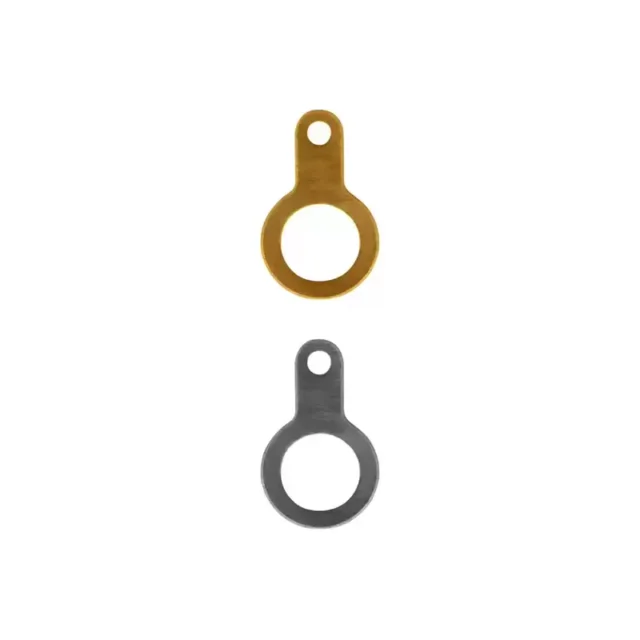

The Earth Tags (Grounding Equipment) is a durable connection component used to ensure safe grounding in electromagnetic environments. Manufactured from brass MS 58 material, it offers high resistance to corrosion thanks to its nickel plating. This equipment is produced in accordance with PG DIN 46320, Metric EN 60423, NPT ANSI B1.20.1, and GAS ISO 228 thread standards, enhancing electrical safety and providing effective protection against electromagnetic interference.

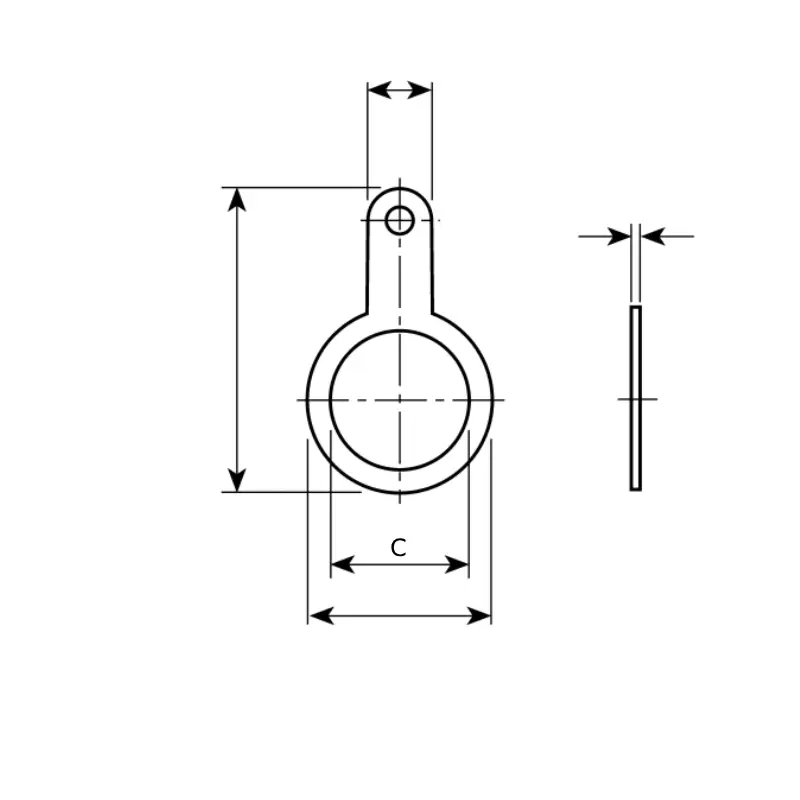

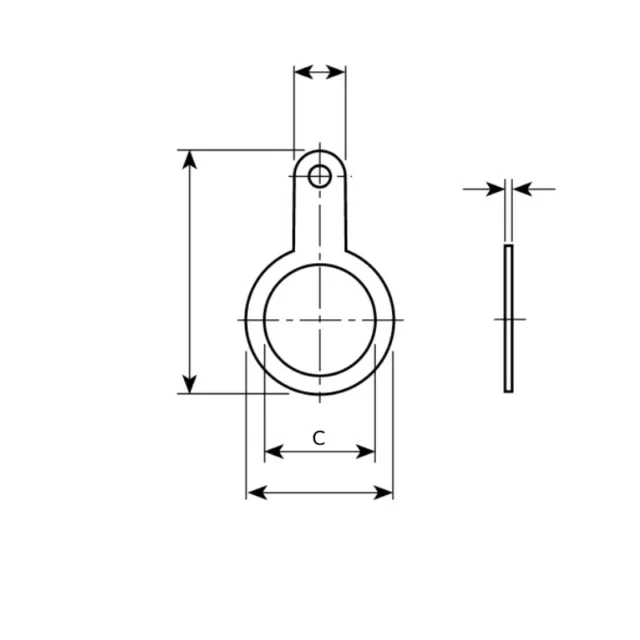

Size Chart
| Nominal Size | Brass | Nickel Plated | Mounting Diameter Ø C |
Box Piece |
| Code No | Code No | (mm) | ||
| M12x1,5 | ETE.05.012 | ETE.06.012 | 12,0 | 100 |
| M16x1,5 | ETE.05.016 | ETE.06.016 | 16,0 | 100 |
| M20x1,5 | ETE.05.020 | ETE.06.020 | 20,0 | 50 |
| M25x1,5 | ETE.05.025 | ETE.06.025 | 25,0 | 50 |
| M32x1,5 | ETE.05.032 | ETE.06.032 | 32,0 | 25 |
| M40x1,5 | ETE.05.040 | ETE.06.040 | 40,0 | 25 |
| M50x1,5 | ETE.05.050 | ETE.06.050 | 50,0 | 20 |
| M63x1,5 | ETE.05.063 | ETE.06.063 | 63,0 | 20 |
| M75x1,5 | ETE.05.075 | ETE.06.075 | 75,0 | 10 |
| M90x1,5 | ETE.05.090 | ETE.06.090 | 90,0 | 10 |
| M100x1,5 | ETE.05.100 | ETE.06.100 | 100,0 | 5 |
| PG-7 | ETE.05.412 | ETE.06.412 | 12,5 | 100 |
| PG-9 | ETE.05.416 | ETE.06.416 | 15,5 | 100 |
| PG-11 | ETE.05.418 | ETE.06.418 | 18,5 | 50 |
| PG-13,5 | ETE.05.420 | ETE.06.420 | 20,5 | 50 |
| PG-16 | ETE.05.425 | ETE.06.425 | 22,5 | 25 |
| PG-21 | ETE.05.432 | ETE.06.432 | 28,5 | 25 |
| PQ-25 | ETE.05.433 | ETE.06.433 | 32,0 | 20 |
| PG-29 | ETE.05.440 | ETE.06.440 | 37,5 | 20 |
| PG-36 | ETE.05.450 | ETE.06.450 | 47,0 | 10 |
| PG-42 | ETE.05.456 | ETE.06.456 | 55,0 | 10 |
| PG-48 | ETE.05.463 | ETE.06.463 | 60,0 | 10 |
| PQ-55 | ETE.05.468 | ETE.06.468 | 65,0 | 10 |
| PQ-60 | ETE.05.473 | ETE.06.473 | 70,0 | 10 |
| PQ-70 | ETE.05.478 | ETE.06.478 | 80,0 | 5 |
| PQ-80 | ETE.05.483 | ETE.06.483 | 90,0 | 5 |
| PQ-90 | ETE.05.488 | ETE.06.488 | 100,0 | 5 |
| PQ-100 | ETE.05.493 | ETE.06.493 | 110,0 | 5 |
| PQ-125 | ETE.05.495 | ETE.06.495 | 135,0 | 5 |
| PQ-150 | ETE.05.496 | ETE.06.496 | 160,0 | 5 |
| PQ-150 | ETE.05.497 | ETE.06.497 | 170,0 | 5 |
| 1/4″ NPT | ETE.05.212 | ETE.06.212 | 13,5 | 100 |
| 3/8″ NPT | ETE.05.216 | ETE.06.216 | 17,0 | 100 |
| 1/2″ NPT | ETE.05.220 | ETE.06.220 | 21,3 | 50 |
| 3/4″ NPT | ETE.05.225 | ETE.06.225 | 26,7 | 50 |
| 1″ NPT | ETE.05.232 | ETE.06.232 | 33,6 | 25 |
| 1-1/4″ NPT | ETE.05.240 | ETE.06.240 | 42,2 | 25 |
| 1-1/2″ NPT | ETE.05.250 | ETE.06.250 | 48,1 | 20 |
| 2″ NPT | ETE.05.263 | ETE.06.263 | 59,9 | 20 |
| 2-1/2″ NPT | ETE.05.275 | ETE.06.275 | 75,5 | 10 |
| 3″ NPT | ETE.05.290 | ETE.06.290 | 88,18 | 10 |
| 3-1/2″ NPT | ETE.05.291 | ETE.06.291 | 100,63 | 5 |
| *All dimensions are for informational purposes only. Tolerances +/- 5%. | ||||
