Din Rails

SKU: OPDR

$0,00

Click here for price request or more info.
Material: DKP / Aluminum (on request)
Galvanised / CR+3 for Coating

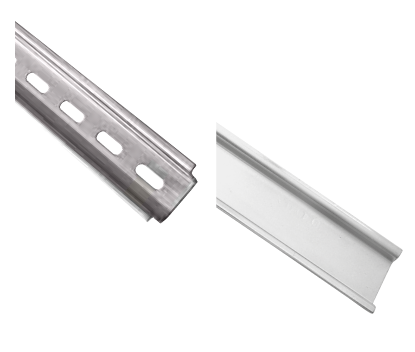

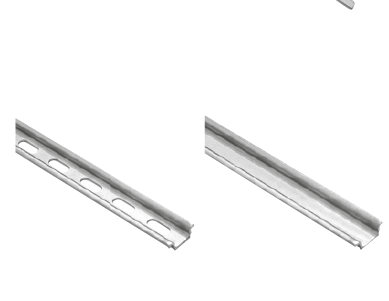

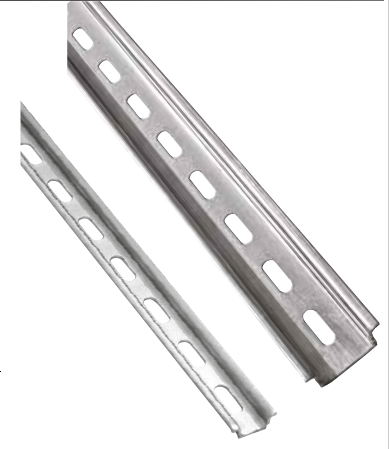

  • Non-Perforated & Perforated options

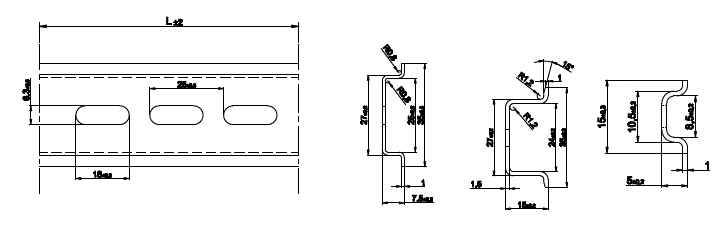

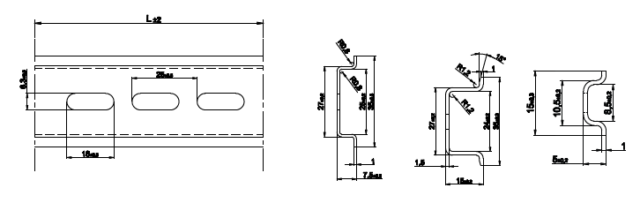

  • 35×7,5 / 35×15 / 15×5,5mm. options

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

CodeTypeDimensions
WidthHeightLength
ONPDR3575-0Non-Perforated357,50,3
ONPDR3575-1Non-Perforated357,51
ONPDR3575-2Non-Perforated357,52
ONPDR3575-3Non-Perforated357,53
OPDR3575-0Perforated357,50,3
OPDR3575-1Perforated357,51
OPDR3575-2Perforated357,52
OPDR3575-3Perforated357,53
ONPDR3515-0Non-Perforated35150,3
ONPDR3515-1Non-Perforated35151
ONPDR3515-2Non-Perforated35152
ONPDR3515-3Non-Perforated35153
OPDR3515-0Perforated35150,3
OPDR3515-1Perforated35151
OPDR3515-2Perforated35152
OPDR3515-3Perforated35153
ONPDR1555-1Non-Perforated155,51
OPDR1555-1Perforated155,51
  • For CR+3 & Aluminum coatings please add ‘CR / AL’ after Part Code!For example: ONPDR3575-0-CR
