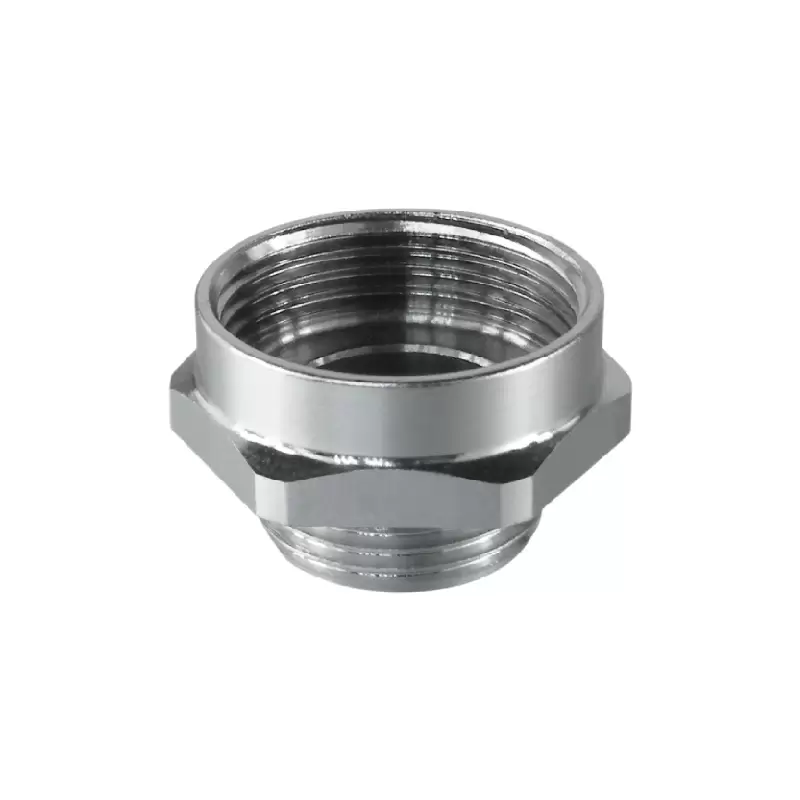

The Ex-proof adapter is a connecting component that facilitates transitions between systems with different thread standards. Made from brass and stainless steel, these adapters stand out for their durability and long service life. With an IP-68 sealing rating, they provide complete protection against water for up to 30 minutes at 5 bar pressure. The adapters can operate in a temperature range of -20°C to +100°C and are designed to withstand harsh environmental conditions. They are compatible with PG DIN 40430, Metric EN 60423, NPT ANSI B1.20.1, and GAS ISO 228 thread standards, making integration into different systems easy and practical.
Size Chart
| Seriler | Erkek | Dişi | Pirinç – Nikel Kaplama | Stainless Steel 304 Kalite |
Thread Length D |
Thread Length D2 |
Height H |
Box Piece |
| Code No | Code No | (mm) | (mm) | (mm) | ||||
| E SERİSİ | M12x1,5 | M16x1,5 | AE.M12M16.6 | AE.M12M16.7 | 12 | 12 | 26 | 50 |
| M16x1,5 | M20x1,5 | AE.M16M20.6 | AE.M16M20.7 | 12 | 12 | 26 | 50 | |
| M20x1,5 | M25x1,5 | AE.M20M25.6 | AE.M20M25.7 | 12 | 12 | 26 | 50 | |
| M25x1,5 | M32x1,5 | AE.M25M32.6 | AE.M25M32.7 | 12 | 12 | 26 | 50 | |
| M32x1,5 | M40x1,5 | AE.M32M40.6 | AE.M32M40.7 | 12 | 12 | 26 | 50 | |
| M40x1,5 | M50x1,5 | AE.M40M50.6 | AE.M40M50.7 | 12 | 12 | 26 | 50 | |
| M50x1,5 | M63x1,5 | AE.M50M63.6 | AE.M50M63.7 | 12 | 12 | 26 | 50 | |
| M63x1,5 | M75x1,5 | AE.M63M75.6 | AE.M63M75.7 | 12 | 12 | 26 | 50 | |
| M80x2 | M90x2 | AE.M80M90.6 | AE.M80M90.7 | 15 | 15 | 32 | 50 | |
| M90x2 | M100x2 | AE.M90M100.6 | AE.M90M100.7 | 15 | 15 | 32 | 50 | |
| 3/8″ NPT | 1/2″ NPT | AE.N38N12.6 | AE.N38N12.6 | 14 | 16 | 32 | 50 | |
| 1/2″ NPT | 3/4″ NPT | AE.N12N34.6 | AE.N12N34.6 | 16 | 16 | 34 | 50 | |
| 3/4″ NPT | 1″ NPT | AE.N34N1.6 | AE.N34N1.6 | 16 | 18 | 36 | 50 | |
| 1″ NPT | 1-1/4″ NPT | AE.N1N114.6 | AE.N1N114.6 | 18 | 18 | 38 | 50 | |
| 1-1/4″ NPT | 1-1/2″ NPT | AE.N114N112.6 | AE.N114N112.6 | 18 | 18 | 38 | 50 | |
| 1-1/2″ NPT | 2″ NPT | AE.N112N2.6 | AE.N112N2.6 | 18 | 20 | 40 | 50 | |
| 2″ NPT | 2-1/2″ NPT | AE.N2N212.6 | AE.N2N212.6 | 20 | 20 | 42 | 50 | |
| 2-1/2″ NPT | 3″ NPT | AE.N212N3.6 | AE.N212N3.6 | 20 | 22 | 44 | 50 | |
| D SERİSİ | M12x1,5 | M16x1,5 | AD.M12M16.6 | AD.M12M16.7 | 15 | 15 | 32 | 50 |
| M16x1,5 | M20x1,5 | AD.M16M20.6 | AD.M16M20.7 | 15 | 15 | 32 | 50 | |
| M20x1,5 | M25x1,5 | AD.M20M25.6 | AD.M20M25.7 | 15 | 15 | 32 | 50 | |
| M25x1,5 | M32x1,5 | AD.M25M32.6 | AD.M25M32.7 | 15 | 15 | 32 | 50 | |
| M32x1,5 | M40x1,5 | AD.M32M40.6 | AD.M32M40.7 | 15 | 15 | 32 | 50 | |
| M40x1,5 | M50x1,5 | AD.M40M50.6 | AD.M40M50.7 | 15 | 15 | 32 | 50 | |
| M50x1,5 | M63x1,5 | AD.M50M63.6 | AD.M50M63.7 | 15 | 15 | 32 | 50 | |
| M63x1,5 | M75x1,5 | AD.M63M75.6 | AD.M63M75.7 | 15 | 15 | 32 | 50 | |
| M80x2 | M90x2 | AD.M80M90.6 | AD.M80M90.7 | 18 | 18 | 38 | 50 | |
| M90x2 | M100x2 | AD.M90M100.6 | AD.M90M100.7 | 18 | 18 | 38 | 50 | |
| 3/8″ NPT | 1/2″ NPT | AD.N38N12.6 | AD.N38N12.6 | 18 | 18 | 38 | 50 | |
| 1/2″ NPT | 3/4″ NPT | AD.N12N34.6 | AD.N12N34.6 | 18 | 18 | 38 | 50 | |
| 3/4″ NPT | 1″ NPT | AD.N34N1.6 | AD.N34N1.6 | 18 | 18 | 40 | 50 | |
| 1″ NPT | 1-1/4″ NPT | AD.N1N114.6 | AD.N1N114.6 | 20 | 20 | 42 | 50 | |
| 1-1/4″ NPT | 1-1/2″ NPT | AD.N114N112.6 | AD.N114N112.6 | 20 | 20 | 42 | 50 | |
| 1-1/2″ NPT | 2″ NPT | AD.N112N2.6 | AD.N112N2.6 | 22 | 22 | 44 | 50 | |
| 2″ NPT | 2-1/2″ NPT | AD.N2N212.6 | AD.N2N212.6 | 22 | 22 | 46 | 50 | |
| 2-1/2″ NPT | 3″ NPT | AD.N212N3.6 | AD.N212N3.6 | 24 | 24 | 48 | 50 | |
| Ex SERİSİ | M12x1,5 | M16x1,5 | AX.M12M16.6 | AX.M12M16.7 | 20 | 20 | 42 | 50 |
| M16x1,5 | M20x1,5 | AX.M16M20.6 | AX.M16M20.7 | 20 | 20 | 42 | 50 | |
| M20x1,5 | M25x1,5 | AX.M20M25.6 | AX.M20M25.7 | 20 | 20 | 42 | 50 | |
| M25x1,5 | M32x1,5 | AX.M25M32.6 | AX.M25M32.7 | 20 | 20 | 42 | 50 | |
| M32x1,5 | M40x1,5 | AX.M32M40.6 | AX.M32M40.7 | 20 | 20 | 42 | 50 | |
| M40x1,5 | M50x1,5 | AX.M40M50.6 | AX.M40M50.7 | 20 | 20 | 42 | 50 | |
| M50x1,5 | M63x1,5 | AX.M50M63.6 | AX.M50M63.7 | 20 | 22 | 44 | 50 | |
| M63x1,5 | M75x1,5 | AX.M63M75.6 | AX.M63M75.7 | 22 | 24 | 48 | 50 | |
| M80x2 | M90x2 | AX.M80M90.6 | AX.M80M90.7 | 24 | 26 | 52 | 50 | |
| M90x2 | M100x2 | AX.M90M100.6 | AX.M90M100.7 | 24 | 26 | 52 | 50 | |
| 3/8″ NPT | 1/2″ NPT | AX.N38N12.6 | AX.N38N12.6 | 20 | 20 | 42 | 50 | |
| 1/2″ NPT | 3/4″ NPT | AX.N12N34.6 | AX.N12N34.6 | 20 | 20 | 42 | 50 | |
| 3/4″ NPT | 1″ NPT | AX.N34N1.6 | AX.N34N1.6 | 20 | 25 | 47 | 50 | |
| 1″ NPT | 1-1/4″ NPT | AX.N1N114.6 | AX.N1N114.6 | 25 | 26 | 53 | 50 | |
| 1-1/4″ NPT | 1-1/2″ NPT | AX.N114N112.6 | AX.N114N112.6 | 26 | 26 | 54 | 50 | |
| 1-1/2″ NPT | 2″ NPT | AX.N112N2.6 | AX.N112N2.6 | 26 | 27 | 55 | 50 | |
| 2″ NPT | 2-1/2″ NPT | AX.N2N212.6 | AX.N2N212.6 | 27 | 40 | 69 | 50 | |
| 2-1/2″ NPT | 3″ NPT | AX.N212N3.6 | AX.N212N3.6 | 40 | 42 | 84 | 50 | |
| *All dimensions are for informational purposes only. Tolerances +/- 5%. | ||||||||
