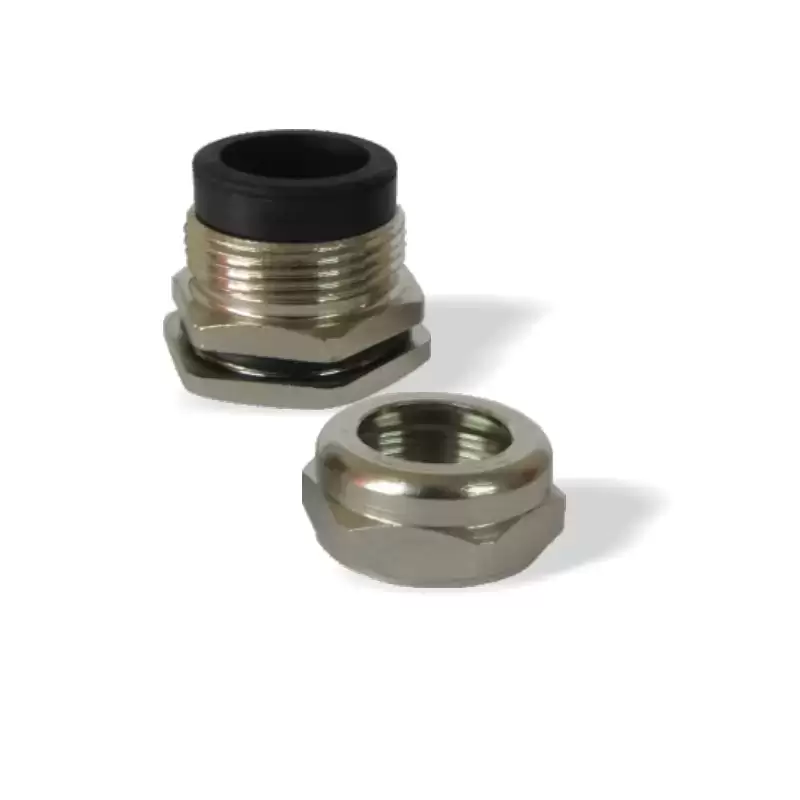

The Waterproof Cable Gland with locknut is a reliable sealing solution that delivers high performance in demanding environments where unarmored cables are used. It is available in two versions made from Brass (MS 58) Nickel-Plated and Stainless Steel materials. Both types are designed to comply with thread standards such as PG DIN 46320, Metric EN 60423, NPT ANSI B1.20.1, and GAS ISO 228, and feature an IP68 protection rating.
- The Brass – Nickel-Plated version offers heat resistance between -40°C and +80°C and is resistant to corrosion.
- The Stainless Steel version is durable within the same temperature range and includes various stainless steel grades such as 303, 304, 316, and 316L. It is particularly preferred for more demanding industrial applications.
Both versions provide mechanical durability and high reliability.

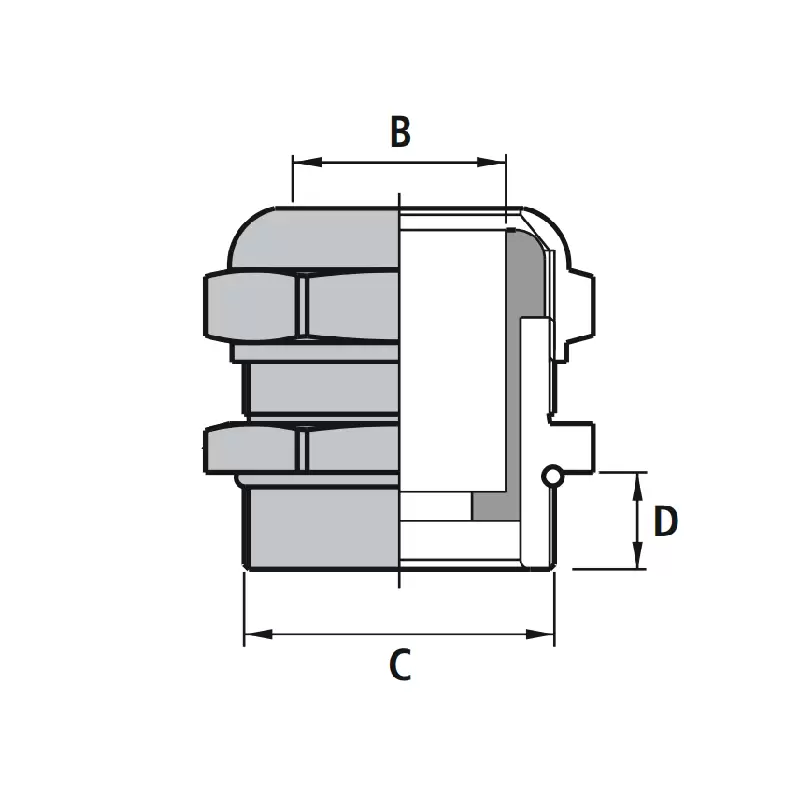

Size Chart
| Nominal Size | Nikel Kaplama |
Stainless Steel | Mounting Diameter Ø C |
D Tip Thread Length D |
Cable Diameter Ø B |
Box Piece |
|
| Code No | Code No | (mm) | (mm) | Min (mm) | Max (mm) | ||
| M10x1,5 | REMXE.06.010 | REMXE.07.010 | 12,0 | 15 | 3,0 | 6,5 | 50 |
| M12x1,5 | REMXE.06.012 | REMXE.07.012 | 12,0 | 15 | 3,0 | 6,5 | 50 |
| M12x1,5 | REMXE.06.013 | REMXE.07.013 | 12,0 | 15 | 4,0 | 8,0 | 50 |
| M16x1,5 | REMXE.06.016 | REMXE.07.016 | 16,0 | 15 | 4,0 | 8,0 | 50 |
| M16x1,5 | REMXE.06.017 | REMXE.07.017 | 16,0 | 15 | 5,0 | 10,0 | 50 |
| M20x1,5 | REMXE.06.020 | REMXE.07.020 | 20,0 | 15 | 6,0 | 12,0 | 25 |
| M20x1,5 | REMXE.06.021 | REMXE.07.021 | 20,0 | 15 | 10,0 | 14,0 | 25 |
| M25x1,5 | REMXE.06.025 | REMXE.07.025 | 25,0 | 15 | 10,0 | 14,0 | 25 |
| M25x1,5 L | REMXE.06.026 | REMXE.07.026 | 25,0 | 15 | 10,0 | 16,0 | 25 |
| M32x1,5 | REMXE.06.032 | REMXE.07.032 | 32,0 | 15 | 13,0 | 18,0 | 25 |
| M32x1,5 | REMXE.06.033 | REMXE.07.033 | 32,0 | 15 | 18,0 | 25,0 | 25 |
| M40x1,5 | REMXE.06.040 | REMXE.07.040 | 40,0 | 15 | 18,0 | 25,0 | 20 |
| M40x1,5 | REMXE.06.041 | REMXE.07.041 | 40,0 | 15 | 22,0 | 32,0 | 20 |
| M50x1,5 | REMXE.06.050 | REMXE.07.050 | 50,0 | 15 | 22,0 | 32,0 | 20 |
| M50x1,5 | REMXE.06.051 | REMXE.07.051 | 50,0 | 15 | 30,0 | 38,0 | 10 |
| M56x1,5 | REMXE.06.056 | REMXE.07.056 | 56,0 | 15 | 30,0 | 38,0 | 10 |
| M63x1,5 | REMXE.06.062 | REMXE.07.062 | 63,0 | 15 | 30,0 | 38,0 | 10 |
| M63x1,5 | REMXE.06.063 | REMXE.07.063 | 63,0 | 15 | 34,0 | 44,0 | 10 |
| M63X1,5 | REMXE.06.062 | REMXE.07.062 | 63,0 | 15 | 40,0 | 52,0 | 10 |
| M63x1,5 | REMXE.06.064 | REMXE.07.064 | 63,0 | 15 | 48,0 | 56,0 | 10 |
| M65x1,5 | REMXE.06.065 | REMXE.07.065 | 65,0 | 15 | 38,0 | 49,0 | 10 |
| M70x1,5 | REMXE.06.070 | REMXE.07.070 | 70,0 | 15 | 40,0 | 52,0 | 10 |
| M72x1,5 | REMXE.06.072 | REMXE.07.072 | 72,0 | 18 | 40,0 | 52,0 | 10 |
| M72x2 | REMXE.06.073 | REMXE.07.073 | 72,0 | 18 | 48,0 | 60,0 | 10 |
| M75x1,5 | REMXE.06.075 | REMXE.07.075 | 75,0 | 18 | 48,0 | 60,0 | 10 |
| M75x2 | REMXE.06.076 | REMXE.07.076 | 75,0 | 18 | 48,0 | 60,0 | 10 |
| M75x2 | REMXE.06.077 | REMXE.07.077 | 75,0 | 18 | 59,0 | 71,0 | 10 |
| M80x1,5 | REMXE.06.080 | REMXE.07.080 | 80,0 | 20 | 48,0 | 60,0 | 10 |
| M80x1,5 | REMXE.06.081 | REMXE.07.081 | 80,0 | 20 | 59,0 | 71,0 | 10 |
| M80x2 | REMXE.06.082 | REMXE.07.082 | 80,0 | 20 | 59,0 | 71,0 | 10 |
| M85x2 | REMXE.06.085 | REMXE.07.085 | 85,0 | 22 | 59,0 | 71,0 | 10 |
| M90x2 | REMXE.06.090 | REMXE.07.090 | 90,0 | 22 | 59,0 | 71,0 | 10 |
| M90x2 | REMXE.06.091 | REMXE.07.091 | 90,0 | 22 | 65,0 | 76,0 | 10 |
| M100x2 | REMXE.06.100 | REMXE.07.100 | 100,0 | 22 | 65,0 | 76,0 | 10 |
| M110x2 | REMXE.06.110 | REMXE.07.110 | 110,0 | 25 | 65,0 | 76,0 | 10 |
| 1/4″ NPT | REMXE.06.212 | REMXE.07.212 | 13,5 | 16 | 3,0 | 6,5 | 50 |
| 3/8″ NPT | REMXE.06.215 | REMXE.07.215 | 17,0 | 16 | 3,0 | 6,5 | 50 |
| 3/8″ NPT | REMXE.06.216 | REMXE.07.216 | 17,0 | 18 | 4,0 | 8,0 | 50 |
| 3/8″ NPT | REMXE.06.217 | REMXE.07.217 | 17,0 | 18 | 5,0 | 10,0 | 50 |
| 1/2″ NPT | REMXE.06.220 | REMXE.07.220 | 21,3 | 18 | 6,0 | 12,0 | 50 |
| 1/2″ NPT | REMXE.06.221 | REMXE.07.221 | 21,3 | 18 | 10,0 | 14,0 | 50 |
| 3/4″ NPT | REMXE.06.227 | REMXE.07.227 | 26,7 | 18 | 13,0 | 18,0 | 25 |
| 1″ NPT | REMXE.06.232 | REMXE.07.232 | 33,6 | 20 | 13,0 | 18,0 | 25 |
| 1″ NPT | REMXE.06.233 | REMXE.07.233 | 33,6 | 20 | 18,0 | 25,0 | 20 |
| 1-1/4″ NPT | REMXE.06.240 | REMXE.07.240 | 42,2 | 20 | 18,0 | 25,0 | 10 |
| 1-1/4″ NPT | REMXE.06.241 | REMXE.07.241 | 42,2 | 20 | 24,0 | 32,0 | 10 |
| 1-1/2″ NPT | REMXE.06.250 | REMXE.07.250 | 48,1 | 20 | 24,0 | 32,0 | 10 |
| 2″ NPT | REMXE.06.262 | REMXE.07.262 | 59,9 | 22 | 40,0 | 52,0 | 10 |
| 2″ NPT | REMXE.06.263 | REMXE.07.263 | 59,9 | 22 | 34,0 | 44,0 | 10 |
| 2-1/2″ NPT | REMXE.06.272 | REMXE.07.272 | 75,5 | 22 | 40,0 | 52,0 | 10 |
| 2-1/2″ NPT | REMXE.06.276 | REMXE.07.276 | 75,5 | 22 | 48,0 | 60,0 | 10 |
| 3″ NPT | REMXE.06.280 | REMXE.07.280 | 88,2 | 24 | 48,0 | 60,0 | 10 |
| 3″ NPT | REMXE.06.285 | REMXE.07.285 | 88,2 | 24 | 59,0 | 71,0 | 10 |
| 3-1/2″ NPT | REMXE.06.291 | REMXE.07.291 | 100,6 | 24 | 65,0 | 76,0 | 10 |
| 4″ NPT | REMXE.06.292 | REMXE.07.292 | 113,3 | 24 | 59,0 | 71,0 | 10 |
| 4″ NPT | REMXE.06.295 | REMXE.07.295 | 113,3 | 24 | 65,0 | 76,0 | 10 |
| *All dimensions are for informational purposes only. Tolerances +/- 5% | |||||||
