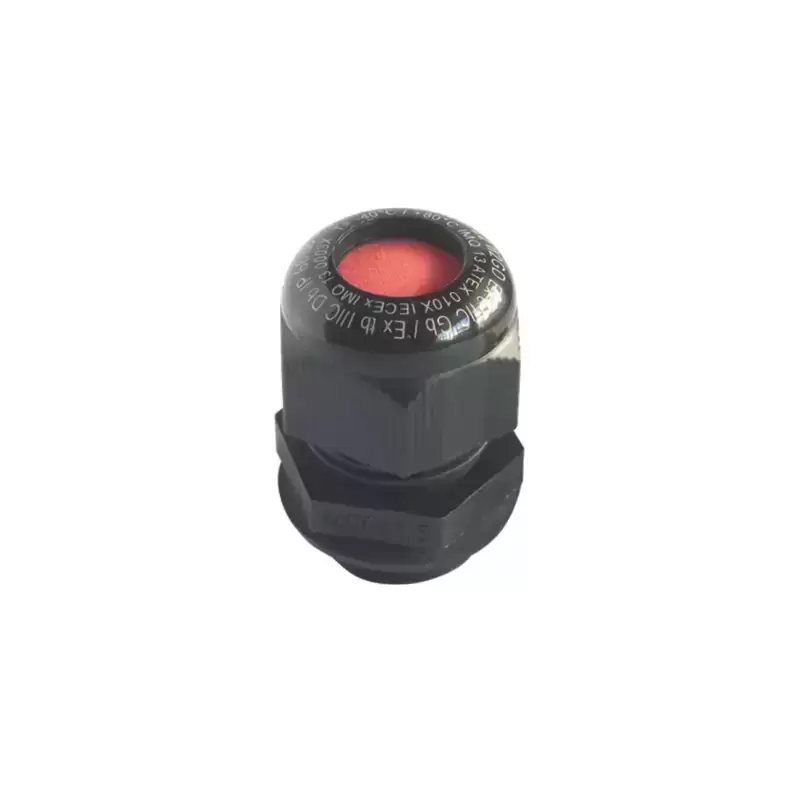

The IP-68 Sealed Polyamide Exproof Cable Gland complies with thread standards PG DIN 46320, Metric EN 60423, NPT ANSI B1.20.1, and GAS ISO 228. It provides IP 68 sealing (30 minutes under 5 bar pressure). With a temperature resistance range of -20°C to +70°C, the product is black (RAL 9005) and made from polyamide PA 6 raw material. Thanks to its ATEX certification and compliance with the 94/9/EC directive, it can be safely used in environments with potential gas and dust explosions. It provides sealing for unarmored cables, making it an ideal solution for intrinsically safe circuits.
Size Chart
| Nominal Size | RAL 9005 Black |

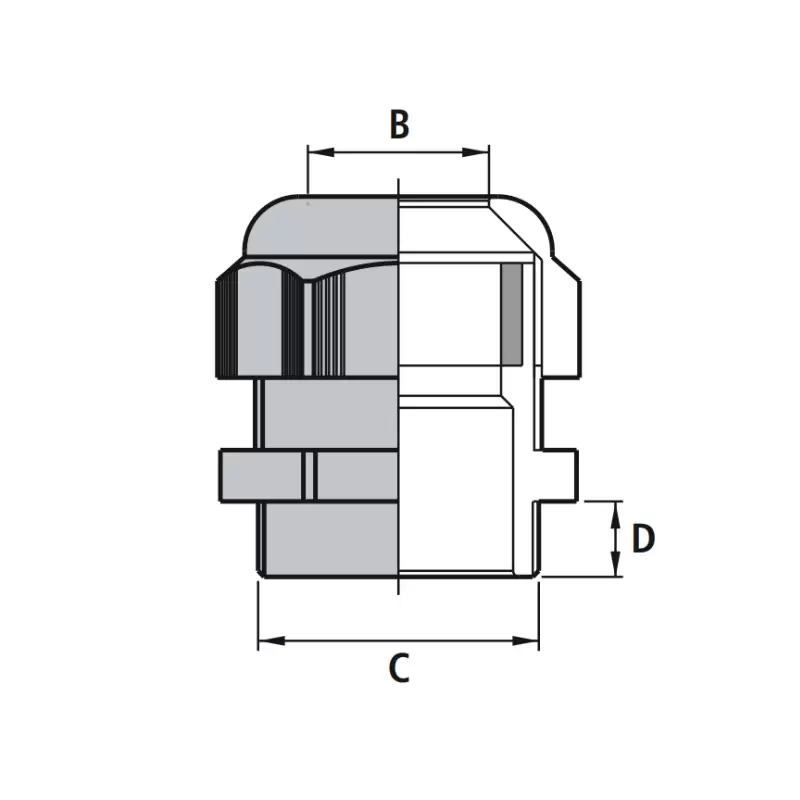

Mounting Diameter Ø C |
Thread Length D |
Cable Diameter Ø B |
Box Piece |
|
| Code No | (mm) | (mm) | Min (mm) | Max (mm) | ||
| M12x1,5 | REP.12.012 | 12,0 | 10,0 | 3,0 | 6,5 | 100 |
| M16x1,5 | REP.12.016 | 16,0 | 10,0 | 5,0 | 10,0 | 50 |
| M20x1,5ss | REP.12.020 | 20,0 | 10,0 | 4,5 | 10,0 | 50 |
| M20x1,5s | REP.12.021 | 20,0 | 10,0 | 6,0 | 12,0 | 50 |
| M20x1,5H | REP.12.022 | 20,0 | 15,0 | 6,0 | 12,0 | 50 |
| M20x1,5 | REP.12.023 | 20,0 | 10,0 | 10,0 | 14,0 | 50 |
| M25x1,5 | REP.12.024 | 20,0 | 15,0 | 10,0 | 14,0 | 50 |
| M25x1,5H | REP.12.025 | 25,0 | 10,0 | 13,0 | 18,0 | 25 |
| M25x1,5ss | REP.12.026 | 25,0 | 15,0 | 13,0 | 18,0 | 25 |
| M25x1,5ssH | REP.12.027 | 25,0 | 10,0 | 10,0 | 14,0 | 50 |
| M25x1,5s | REP.12.028 | 25,0 | 15,0 | 10,0 | 14,0 | 50 |
| M32x1,5 | REP.12.029 | 25,0 | 10,0 | 11,0 | 17,0 | 50 |
| M32x1,5ss | REP.12.032 | 32,0 | 15,0 | 18,0 | 25,0 | 20 |
| M32x1,5s | REP.12.033 | 32,0 | 10,0 | 13,0 | 18,0 | 25 |
| M32x1,8 | REP.12.034 | 32,0 | 10,0 | 15,0 | 21,0 | 25 |
| M40x1,5 | REP.12.040 | 40,0 | 18,0 | 22,0 | 32,0 | 10 |
| M40x1,5s | REP.12.041 | 40,0 | 10,0 | 19,0 | 28,0 | 10 |
| M40x1,7sH | REP.12.042 | 40,0 | 15,0 | 19,0 | 28,0 | 10 |
| M50x1,5 | REP.12.050 | 50,0 | 18,0 | 30,0 | 38,0 | 10 |
| M63x1,5 | REP.12.063 | 63,0 | 18,0 | 34,0 | 44,0 | 10 |
| 1/2ss” NPT | REP.12.220 | 22,0 | 15,0 | 5,0 | 10,0 | 50 |
| 1/2″s NPT | REP.12.221 | 22,0 | 15,0 | 6,0 | 12,0 | 50 |
| 1/2″ NPT | REP.12.222 | 22,0 | 15,0 | 10,0 | 14,0 | 50 |
| 3/4″ NPT | REP.12.223 | 27,0 | 15,0 | 13,0 | 18,0 | 25 |
| 1″ NPT | REP.12.224 | 34,0 | 18,0 | 18,0 | 25,0 | 20 |
| 1- 1/4″ NPT | REP.12.225 | 43,0 | 18,0 | 22,0 | 32,0 | 20 |
| 1- 1/2″ NPT | REP.12.226 | 49,0 | 18,0 | 30,0 | 38,0 | 20 |
| 2″ NPT | REP.12.227 | 61,0 | 18,0 | 34,0 | 44,0 | 20 |
| PG-13,5 | REP.12.413 | 20,5 | 10,0 | 6,0 | 12,0 | 50 |
| PG-16 | REP.12.416 | 22,5 | 10,0 | 10,0 | 14,0 | 50 |
| PG-21 | REP.12.421 | 28,5 | 11,0 | 13,0 | 18,0 | 25 |
| PG-29 | REP.12.429 | 37,5 | 11,0 | 18,0 | 25,0 | 20 |
| PG-36 | REP.12.436 | 47,0 | 13,0 | 22,0 | 32,0 | 10 |
| PG-42 | REP.12.442 | 55,0 | 13,0 | 30,0 | 38,0 | 10 |
| PG-48 | REP.12.448 | 60,0 | 14,0 | 34,0 | 44,0 | 10 |
| *All dimensions are for informational purposes only. Tolerances +/- 5% | ||||||
