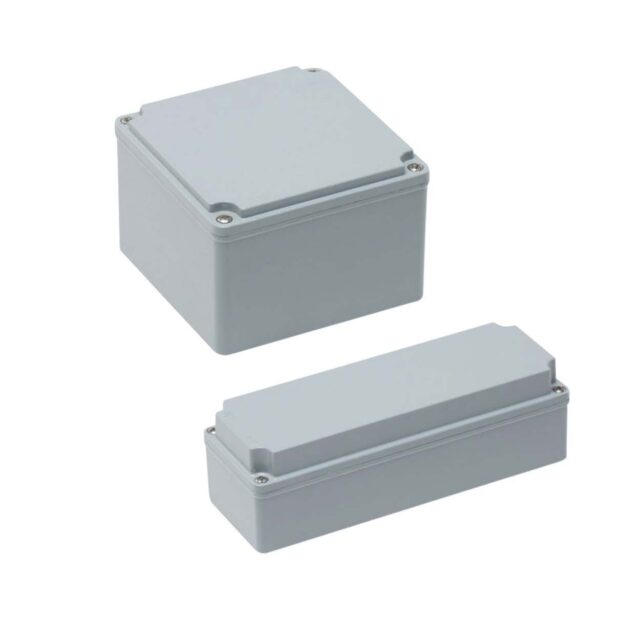

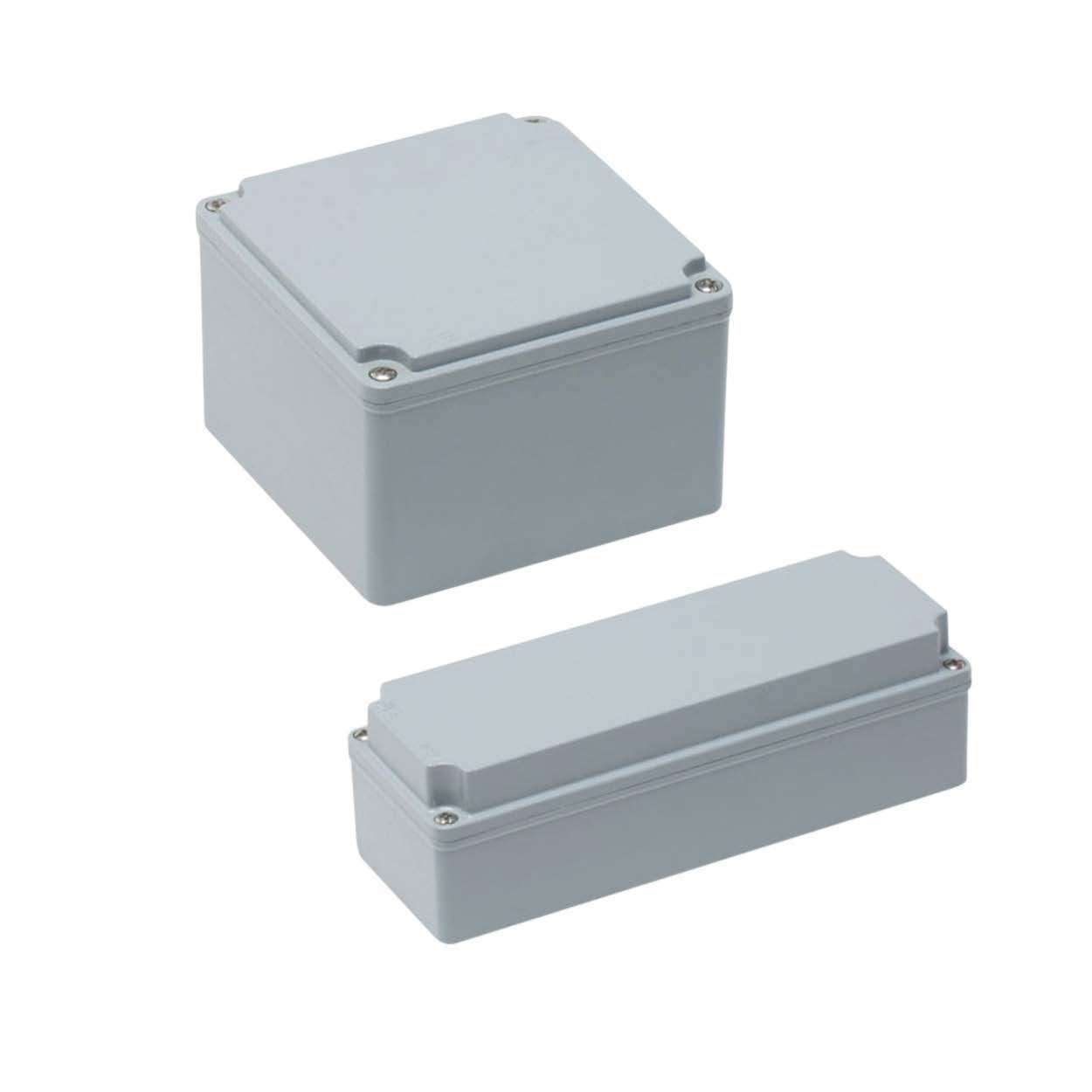

Aluminium Junction Boxes

Name: Aluminium Junction Boxes - OnElecs
SKU: JB
Availability: InStock

SKU: JB

₺0,00

Only dealers can see the prices. Click here for application

Material:

Aluminium for Box
PU for Gasket
Stainless Steel for Screws
Temperature Range: -40°to +80
Ingress Protection Rating: IP67 / 68
Impact Resistance: IK09

Earthing: Both on Cover & Base
Color RAL7040 (Grey)
Unbreakable (IK09)

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code	Dimensions
Code	mm	mm	mm
OAEB656540	65	65	40
OAEB651040	65	100	40
OAEB808060	80	80	60
OAEB808073	80	80	73
OAEB801360	80	130	60
OAEB801373	80	130	73
OAEB101073	100	100	73
OAEB101090	100	100	90
OAEB801760	80	170	60
OAEB801773	80	170	73
OAEB802373	80	230	73
OAEB101680	100	160	80
OAEB102080	100	200	80
OAEB122290	120	220	90
OAEB131390	130	130	90
OAEB131990	130	190	90
OAEB132390	130	230	90
OAEB142090	140	200	90
OAEB161690	160	160	90
OAEB162690	160	260	90
OAEB171990	170	190	90
OAEB181810	180	180	100
OAEB182810	180	280	100
OAEB192590	190	250	90
OAEB192511	190	250	110
OAEB193590	190	350	90
OAEB252511	250	250	110
OAEB314014	310	400	140
