| Entry Thread Size | Light Grey RAL7035 Code |
Cable Range | H | GL | Wrench | ||
| Inch | mm. | mm | mm | mm | |||
| M 12 x 1,5 | MCG01-L | .12-.26 | 3-6,5 | 24 | 8 | 15 | |
| M 16 x 1,5 | MCG02-L | .15-.32 | 4-8 | 28 | 8 | 19 | |
| M 16 x 1,5 | MCG03-L | .19-.39 | 5-10 | 29 | 10 | 22 | |
| M 20 x 1,5 | MCG04-L | .15-.39 | 4-10 | 29 | 10 | 24 | |
| M 20 x 1,5 | MCG05-L | .23-.47 | 6-12 | 29 | 10 | 24 | |
| M 20 x 1,5 | MCG06-L | .39-.55 | 10-14 | 33 | 10 | 27 | |
| M 25 x 1,5 | MCG07-L | .35-.67 | 9-17 | 38 | 10 | 33 | |
| M 25 x 1,5 | MCG08-L | .51-.71 | 13-18 | 38 | 10 | 33 | |
| M 25 x 1,5 | MCG09-L | .43-.67 | 11-17 | 35 | 10 | 29 | |
| M 25 x 1,5 | MCG10-L | .35-.55 | 9-14 | 35 | 10 | 29 | |
| M 25 x 1,5 | MCG11-L | .15-.39 | 4-10 | 32 | 10 | 29 | |
| M 25 x 1,5 | MCG12-L | .23-.47 | 6-12 | 32 | 10 | 29 | |
| M 32 x 1,5 | MCG13-L | .70-.98 | 18-25 | 41 | 10 | 42 | |
| M 40 x 1,5 | MCG14-L | .87-1.26 | 22-32 | 51 | 10 | 53 | |
| M 50 x 1,5 | MCG15-L | 1.18-1.49 | 30-38 | 53 | 18 | 60 | |
| M 63 x 1,5 | MCG16-L | 1.33-1.73 | 34-44 | 55 | 18 | 70 | |

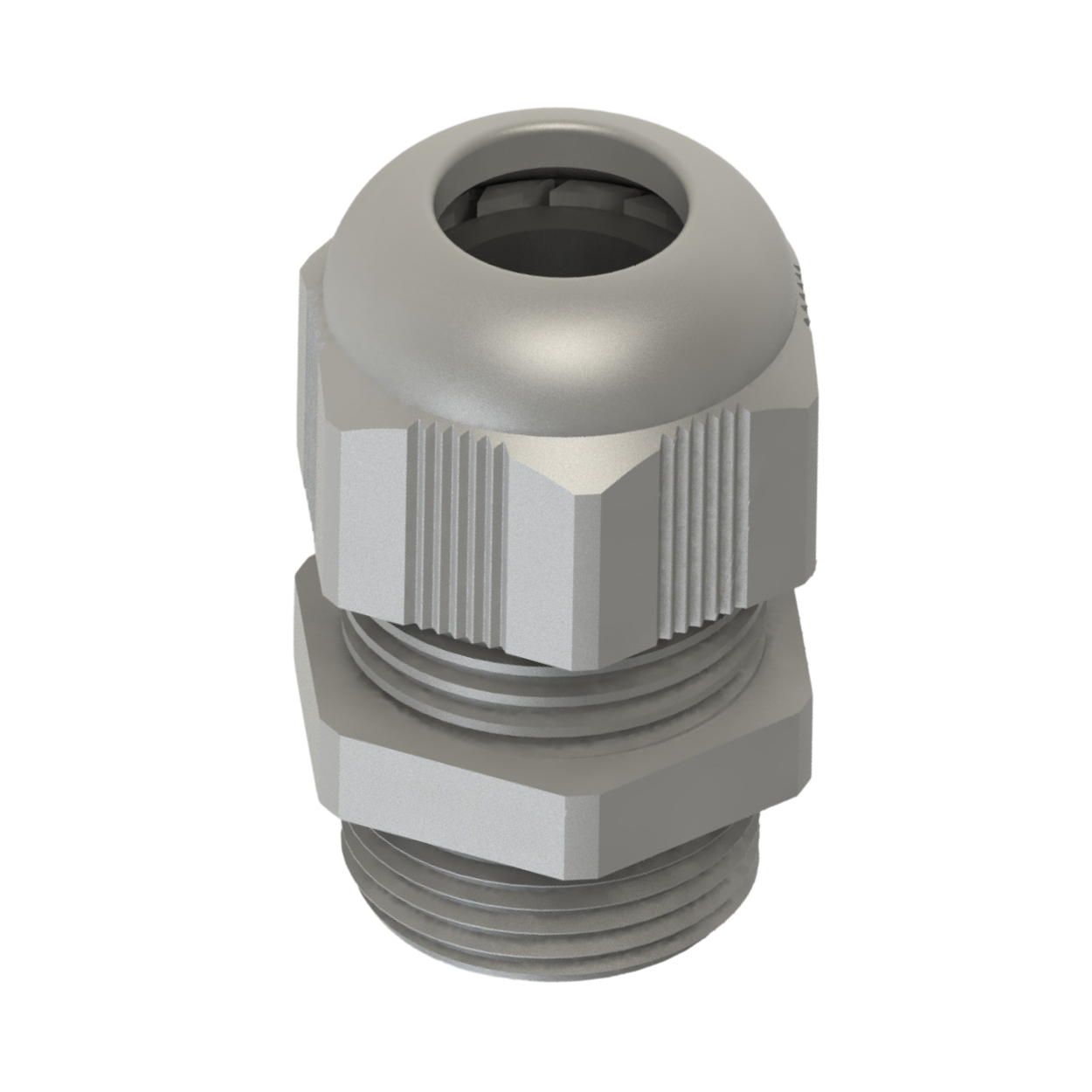

Metric Nylon Cable Glands
SKU: MNCG
$0,00
Material:
PA6 Nylon)for Gland
TPV for Seal
NBR for o-ring (on request) TPV for washer (on request)
Temperature Range: -20°to +100 permanent
up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with o-ring or washer
Flame Reterdancy: V2 according to UL94 / V0 (on request)
Standards: EN50262 Metric EN60423
- Standard Metric threaded nylon cable glands
- TPV sealing provide strong Cable Grip, Strain Relief and Superior
Ingress Protection - With its unique Anti-Click design, provides Anti-Vibration
- Easy Assembly
- Halogen Free
- Accessories such as locknut and o-ring must be ordered separately.
