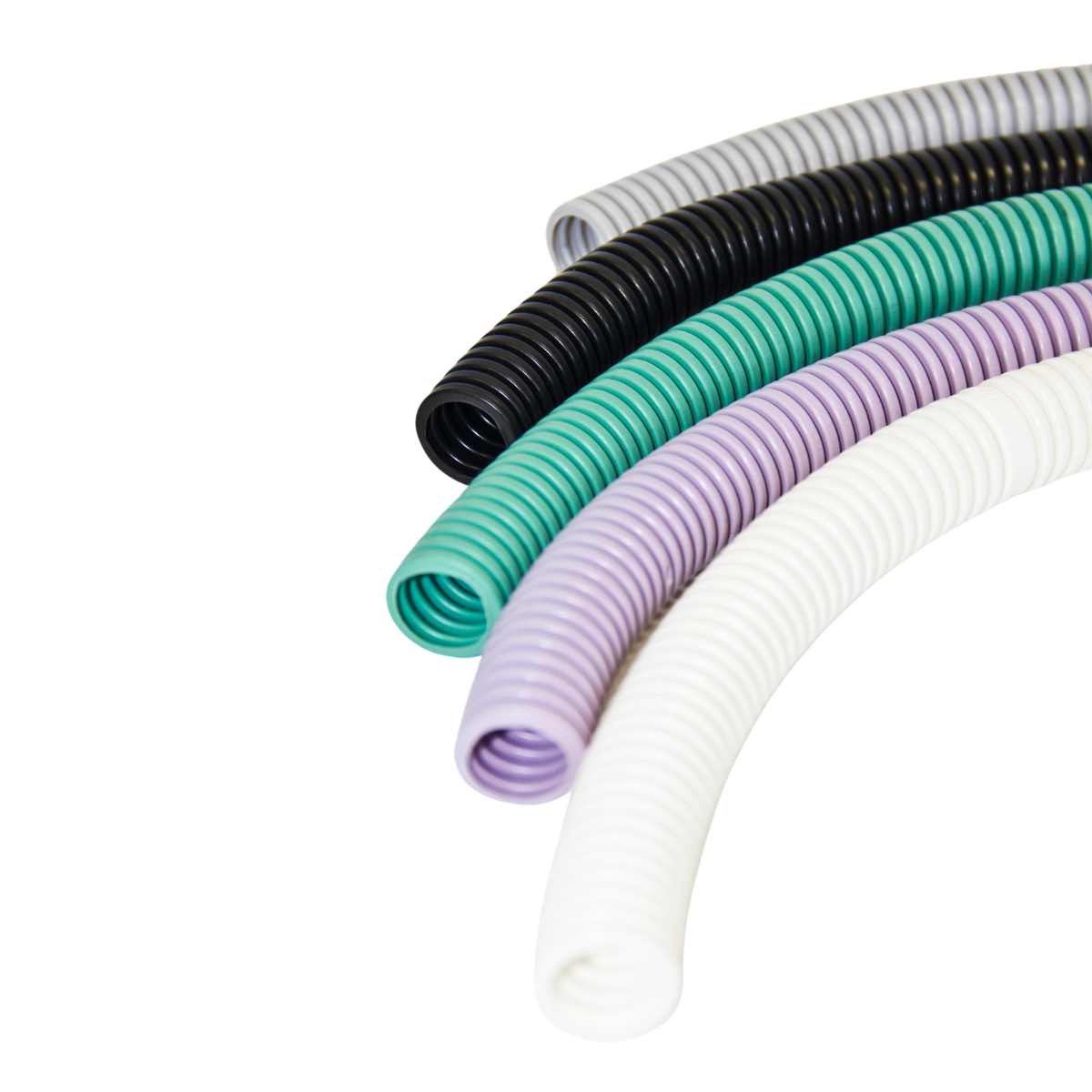

PE (Polyethylene) Flexible Conduit (Halogen Free)

Name: PE (Polyethylene) Flexible Conduit (Halogen Free) - OnElecs
SKU: OF
Availability: InStock

SKU: OF

$0,00

Click here for price request or more info.

EN61386-21-22
Material: PE (polyethylene) based Thermoplastic
Compression Resistance: 125 / 320 / 750 Newton 60 Sec. 23±2°C
Impact Resistance: 1kg. – 100mm. -25°C.
Temp range: -25°C +60°C.
Flame Retardant: Halogen Free
Main usage: Electrical Installations, Public
Buildings,Construction, Industries where high
mechanical protection is required
Colors: Any color available upon request

Attachments

Technical Datasheet

Declaration of Conformity

Product Order Detail

Description

Code			Nominal Size	Size (mm.)		Coil Length (mt.)
125N	320N	750N	Nominal Size	Inner	Outer	Coil Length (mt.)
OF0-016	OF1-016	OF3-016	16		16	100
OF0-020	OF1-020	OF3-020	20		20	100
OF0-025	OF1-025	OF3-025	25		25	50
OF0-032	OF1-032	OF3-032	32		32	50
OF0-040	OF1-040	OF3-040	40		40	50
OF0-050	OF1-050	OF3-050	50		50	25

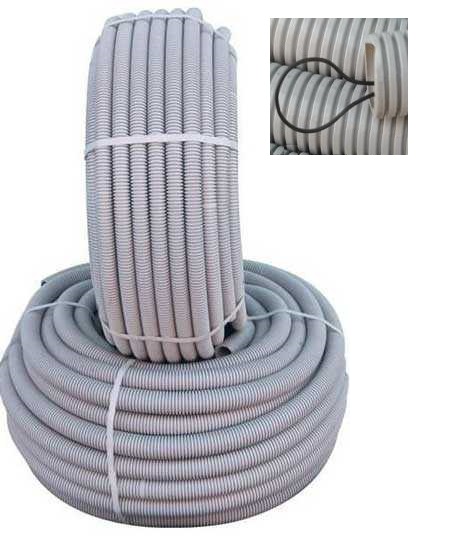

This product can also be supplied with a draw wire. Please add “dw” after part code
For other color Please add color name “OF1-025-Grey” after part code.
