Ex-proof Tank Lamp
SKU: ZNT.X
₺0,00

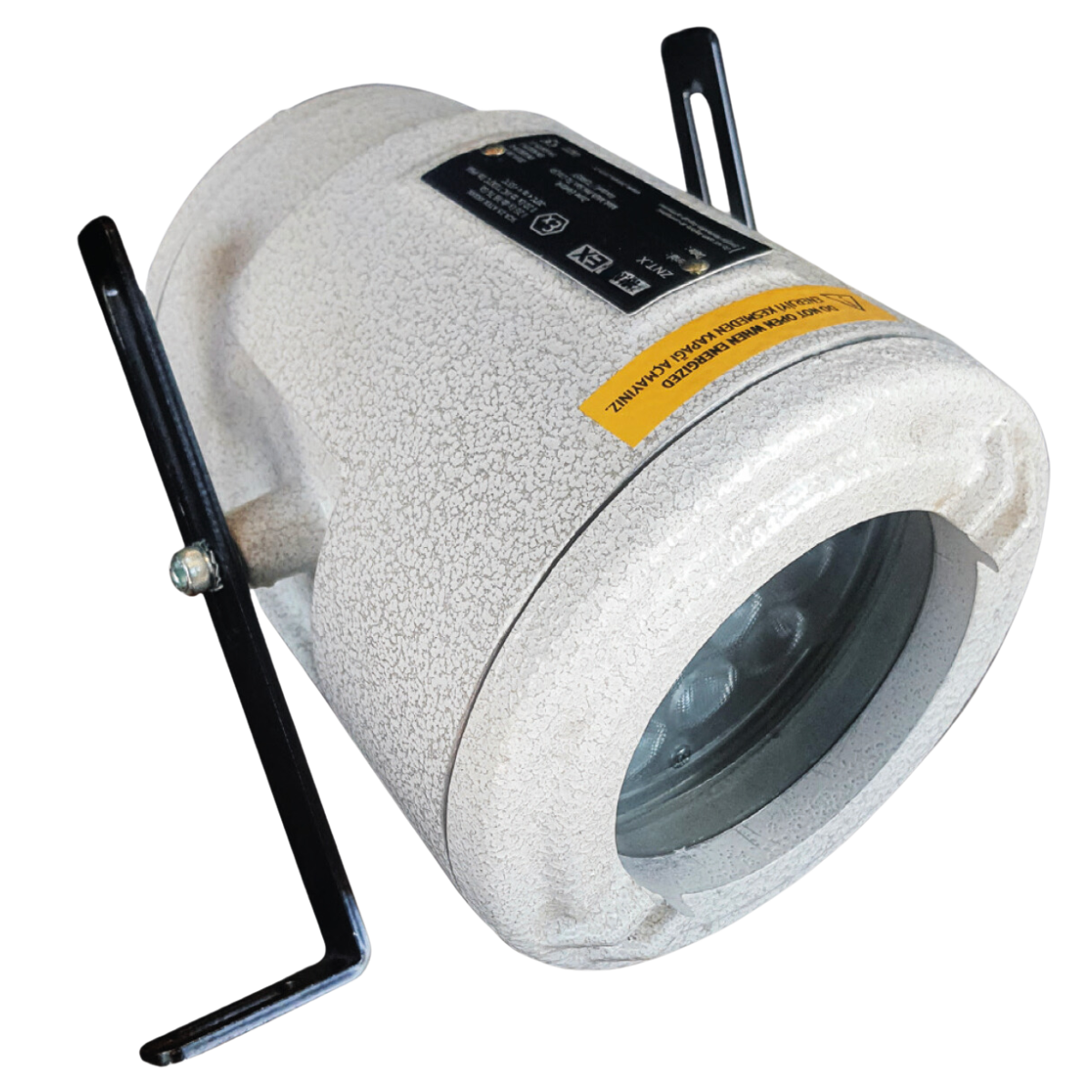

Product: Aluminium Body Tank Lamp
Certification: SCA 23 ATEX 186X
Marking: II 2G Ex db IIB+H2 T6 Gb II 2D Ex tb IIIC T80°C Db
Protection Class: IP66
Temp. Range: -20 °C up to +45 °C
Standards: EN60079-0: 2018; EN60079-1: 2014; EN60079-31: 2014
Cable Entries: 1×1/2” NPT (other options on request)
Material (Body): Low Cooper Aluminium Alloy
Difusser: Shock and high temperature tempered glass
Gaskets: NBR oring on cover
Paint: Electrostatic Powder Coat
Circuit: Led Driver
Rated Voltage: 220/240V AC – 24V DC
Frequency: 47/63 Hz
Applications: Oil refineries, Chemical and petrochemical plants, Boiler rooms etc.
