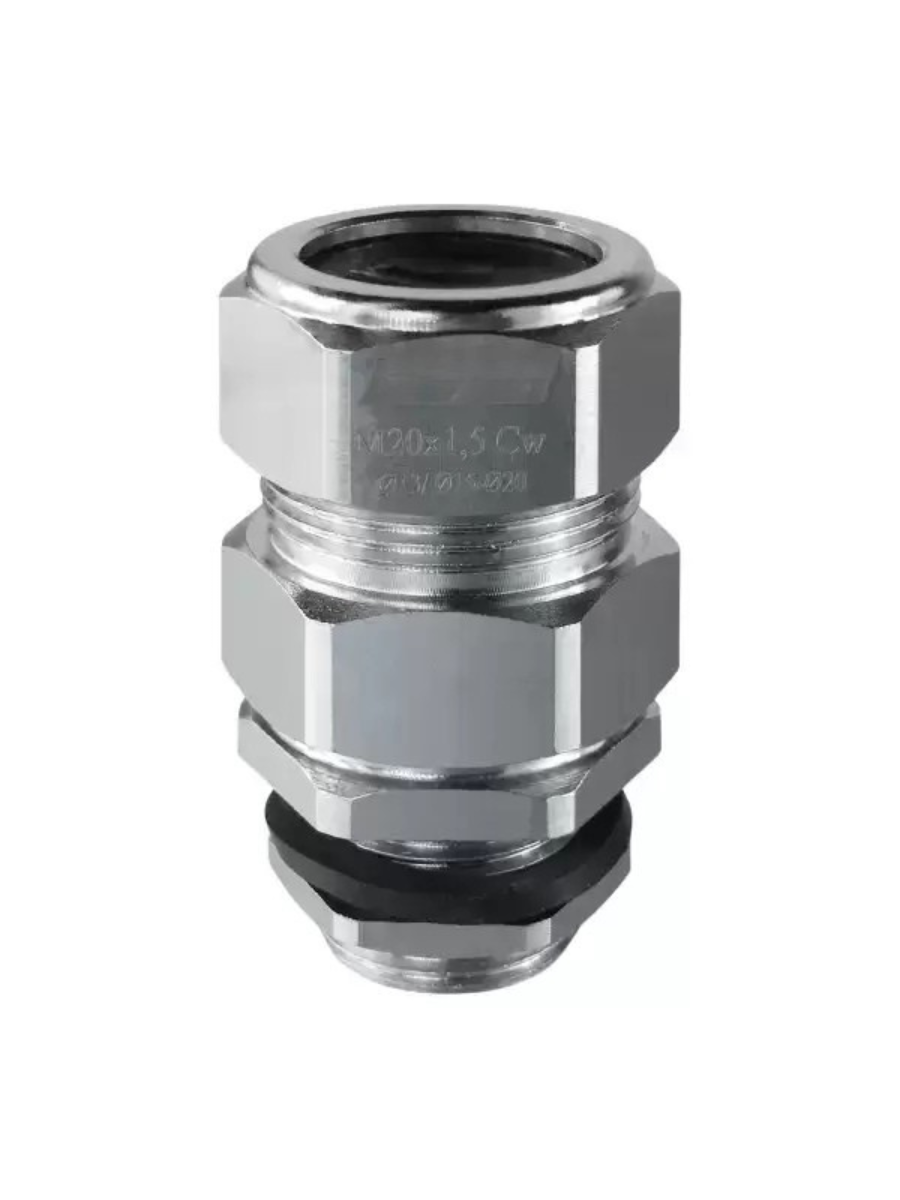

The CW Series Exproof Armored Cable Gland complies with thread standards PG DIN 46320, Metric EN 60423, NPT ANSI B1.20.1, and GAS ISO 228. It has an IP 68 sealing rating and exhibits heat resistance between -40°C and +80°C. Its raw material is brass (MS 58) with nickel plating. Material options include 304 and 316/316L (middle code 07 for 304 and 27 for 316). The product carries the markings IEP 12 ATEX 106X, II 2G Ex db II C Gb, and II 2D Ex tb IIIC Db, and complies with the 2014/34/EU directive. It provides high-quality sealing in hazardous area applications and is suitable for use with armored cables.

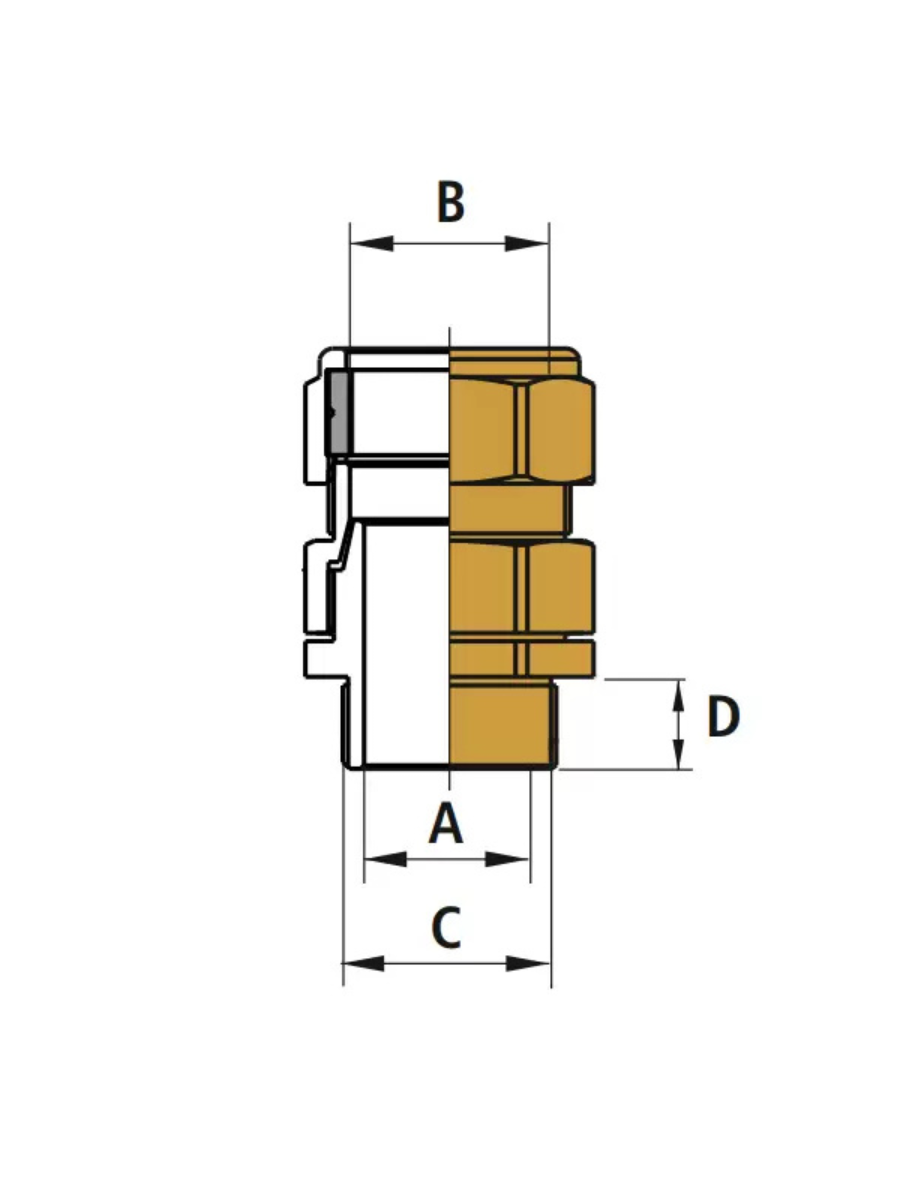

Size Chart
| Nominal Size | Nickel Plated | Stainless Steel | Mounting Diameter Ø C |
Thread Length D |
Cable Diameter Ø A |
Cable Diameter Ø B |
Box Piece |
|
| Code No | Code No | (mm) | (mm) | Max (mm) | Min (mm) | Max (mm) | ||
| M10x1,5 | CW.06.010 | CW.07.010 | 10,0 | 15,0 | 4,5 | 3,0 | 6,5 | 50 |
| M12x1,5 | CW.06.012 | CW.07.012 | 12,0 | 15,0 | 6,5 | 4,0 | 9,0 | 50 |
| M16x1,5 | CW.06.016 | CW.07.016 | 16,0 | 15,0 | 9,0 | 11,0 | 13,5 | 50 |
| M20x1,5 s | CW.06.019 | CW.07.019 | 20,0 | 15,0 | 13,0 | 15,0 | 20,0 | 50 |
| M20x1,5 | CW.06.020 | CW.07.020 | 20,0 | 15,0 | 15,0 | 17,0 | 22,0 | 50 |
| M20x1,5L | CW.06.021 | CW.07.021 | 20,0 | 15,0 | 17,0 | 17,0 | 22,0 | 50 |
| M25x1,5s | CW.06.024 | CW.07.024 | 25,0 | 15,0 | 19,0 | 20,0 | 27,0 | 50 |
| M25x1,5 | CW.06.025 | CW.07.025 | 25,0 | 15,0 | 19,0 | 22,0 | 30,0 | 50 |
| M25x1,5L | CW.06.026 | CW.07.026 | 25,0 | 15,0 | 22,0 | 20,0 | 27,0 | 25 |
| M32x1,5s | CW.06.031 | CW.07.031 | 32,0 | 15,0 | 26,0 | 26,0 | 33,0 | 25 |
| M32x1,5 | CW.06.032 | CW.07.032 | 32,0 | 15,0 | 27,0 | 28,0 | 37,0 | 25 |
| M32x1,5L | CW.06.033 | CW.07.033 | 32,0 | 15,0 | 30,0 | 28,0 | 37,0 | 25 |
| M40x1,5s | CW.06.039 | CW.07.039 | 40,0 | 15,0 | 32,0 | 31,0 | 40,0 | 20 |
| M40x1,5 | CW.06.040 | CW.07.040 | 40,0 | 15,0 | 33,0 | 36,0 | 45,0 | 20 |
| M40x1,5L | CW.06.041 | CW.07.041 | 40,0 | 15,0 | 37,0 | 36,0 | 45,0 | 20 |
| M50x1,5s | CW.06.049 | CW.07.049 | 50,0 | 15,0 | 44,0 | 43,0 | 54,0 | 15 |
| M50x1,5 | CW.06.050 | CW.07.050 | 50,0 | 15,0 | 45,0 | 49,0 | 59,0 | 15 |
| M50x1,5L | CW.06.051 | CW.07.051 | 50,0 | 15,0 | 49,0 | 49,0 | 59,0 | 15 |
| M63x1,5s | CW.06.062 | CW.07.062 | 63,0 | 15,0 | 54,0 | 58,0 | 64,0 | 10 |
| M63x1,5 | CW.06.063 | CW.07.063 | 63,0 | 15,0 | 56,0 | 60,0 | 69,0 | 10 |
| M63x1,5L | CW.06.064 | CW.07.064 | 63,0 | 15,0 | 64,0 | 60,0 | 72,0 | 10 |
| M75x1,5s | CW.06.074 | CW.07.074 | 75,0 | 16,0 | 64,0 | 61,0 | 72,0 | 5 |
| M75x1,5 | CW.06.075 | CW.07.075 | 75,0 | 16,0 | 68,0 | 65,0 | 78,0 | 5 |
| M80x2s | CW.06.079 | CW.07.079 | 80,0 | 16,0 | 69,0 | 65,0 | 78,0 | 4 |
| M80x2 | CW.06.080 | CW.07.080 | 80,0 | 16,0 | 72,0 | 73,0 | 83,0 | 4 |
| M90x2s | CW.06.089 | CW.07.089 | 90,0 | 18,0 | 78,0 | 73,0 | 83,0 | 2 |
| M90x2 | CW.06.090 | CW.07.090 | 90,0 | 18,0 | 78,0 | 77,0 | 89,0 | 2 |
| M90x2L | CW.06.091 | CW.07.091 | 90,0 | 18,0 | 82,0 | 86,0 | 95,0 | 2 |
| M100x2s | CW.06.099 | CW.07.099 | 100,0 | 20,0 | 83,0 | 77,0 | 89,0 | 1 |
| M100x2 | CW.06.100 | CW.07.100 | 100,0 | 20,0 | 89,0 | 86,0 | 98,0 | 1 |
| M110x2 | CW.06.110 | CW.07.110 | 110,0 | 20,0 | 98,0 | 95,0 | 110,0 | 1 |
| M118x2 | CW.06.118 | CW.07.118 | 118,0 | 20,0 | 110,0 | 115,0 | 130,0 | 1 |
| 1/8 NPT | CW.06.210 | CW.07.210 | 10,0 | 16,0 | 4,5 | 3,0 | 6,5 | 50 |
| 1/4″NPT | CW.06.212 | CW.07.212 | 13,5 | 16,0 | 6,5 | 4,0 | 9,0 | 50 |
| 3/8″ NPT | CW.06.216 | CW.07.216 | 17,0 | 16,0 | 9,0 | 11,0 | 13,5 | 50 |
| 1/2″s NPT | CW.06.219 | CW.07.219 | 21,3 | 18,0 | 11,0 | 11,0 | 15,0 | 50 |
| 1/2″ NPT | CW.06.220 | CW.07.220 | 21,3 | 18,0 | 13,0 | 15,0 | 20,0 | 50 |
| 1/2″L NPT | CW.06.221 | CW.07.221 | 21,3 | 18,0 | 15,0 | 17,0 | 22,0 | 50 |
| 3/4″s NPT | CW.06.224 | CW.07.224 | 26,7 | 18,0 | 17,0 | 17,0 | 22,0 | 50 |
| 3/4″ NPT | CW.06.225 | CW.07.225 | 26,7 | 18,0 | 19,0 | 20,0 | 27,0 | 50 |
| 3/4″L NPT | CW.06.226 | CW.07.226 | 26,7 | 18,0 | 19,0 | 22,0 | 30,0 | 25 |
| 1″s NPT | CW.06.231 | CW.07.231 | 33,5 | 20,0 | 22,0 | 20,0 | 27,0 | 25 |
| 1″ NPT | CW.06.232 | CW.07.232 | 33,5 | 20,0 | 26,0 | 26,0 | 33,0 | 25 |
| 1″L NPT | CW.06.233 | CW.07.233 | 33,5 | 20,0 | 27,0 | 28,0 | 37,0 | 25 |
| 1-1/4″s NPT | CW.06.239 | CW.07.239 | 42,2 | 20,0 | 30,0 | 28,0 | 37,0 | 20 |
| 1-1/4″ NPT | CW.06.240 | CW.07.240 | 42,2 | 20,0 | 32,0 | 31,0 | 40,0 | 20 |
| 1-1/2s NPT | CW.06.241 | CW.07.241 | 48,1 | 20,0 | 33,0 | 36,0 | 45,0 | 20 |
| 1-1/2″ NPT | CW.06.249 | CW.07.249 | 48,1 | 20,0 | 37,0 | 36,0 | 45,0 | 15 |
| 2″s NPT | CW.06.250 | CW.07.250 | 59,9 | 20,0 | 44,0 | 43,0 | 54,0 | 15 |
| 2″ NPT | CW.06.251 | CW.07.251 | 59,9 | 20,0 | 45,0 | 49,0 | 59,0 | 15 |
| 2-1/4″ NPT | CW.06.262 | CW.07.262 | 66,0 | 20,0 | 49,0 | 49,0 | 59,0 | 10 |
| 2-1/2″s NPT | CW.06.263 | CW.07.263 | 75,5 | 22,0 | 54,0 | 58,0 | 64,0 | 10 |
| 2-1/2″ NPT | CW.06.264 | CW.07.264 | 75,5 | 22,0 | 56,0 | 60,0 | 69,0 | 10 |
| 2-1/2″L NPT | CW.06.274 | CW.07.274 | 75,5 | 22,0 | 64,0 | 61,0 | 72,0 | 5 |
| 2-3/4″ NPT | CW.06.279 | CW.07.279 | 81,8 | 22,0 | 69,0 | 65,0 | 78,0 | 5 |
| 3″s NPT | CW.06.289 | CW.07.289 | 88,2 | 22,0 | 78,0 | 73,0 | 83,0 | 2 |
| 3″ NPT | CW.06.290 | CW.07.290 | 88,2 | 22,0 | 78,0 | 77,0 | 89,0 | 2 |
| 3-3/4″ NPT | CW.06.291 | CW.07.291 | 107,0 | 22,0 | 82,0 | 86,0 | 98,0 | 1 |
| 3-1/2″s NPT | CW.06.292 | CW.07.292 | 100,6 | 22,0 | 83,0 | 77,0 | 89,0 | 1 |
| 3-1/2″ NPT | CW.06.293 | CW.07.293 | 100,6 | 22,0 | 89,0 | 86,0 | 98,0 | 1 |
| 4″ NPT | CW.06.294 | CW.07.294 | 113,3 | 22,0 | 98,0 | 95,0 | 110,0 | 1 |
| 4-1/2″ NPT | CW.06.295 | CW.07.295 | 126,0 | 22,0 | 110,0 | 115,0 | 130,0 | 1 |
| *All dimensions are for informational purposes only. Tolerances +/- 5%. | ||||||||
