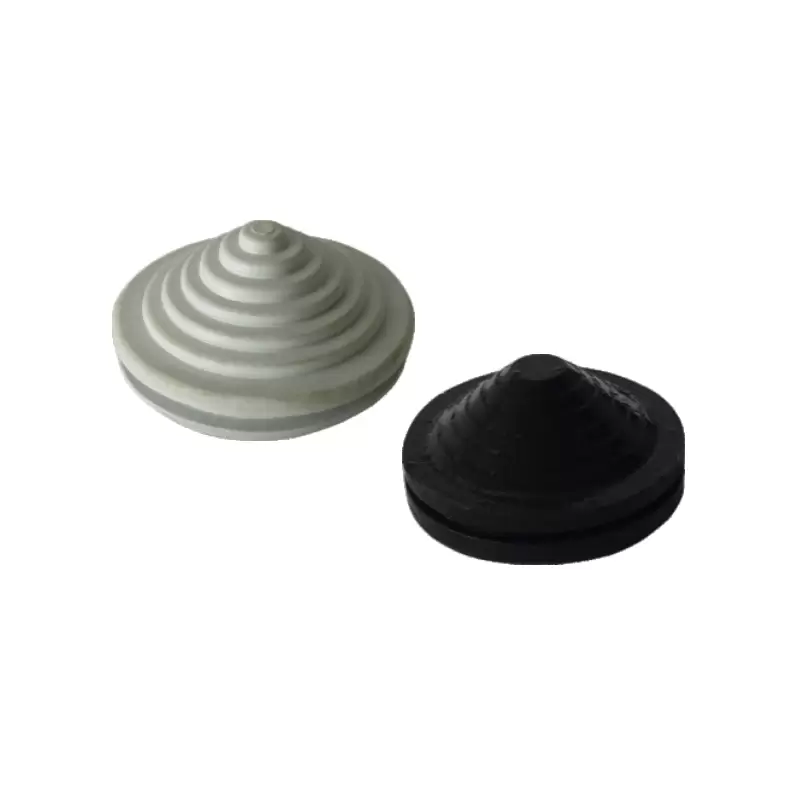

The Grommets (TP Rubber Blind Plug) is designed for push-fit use. With a sealing degree of IP 56, this plug is resistant to temperatures between -20°C and +65°C. Made from TP-NR Rubber raw material, the product comes in RAL 7035 (Light Gray) color. It is recommended for use in areas that need to be temporarily or permanently sealed.

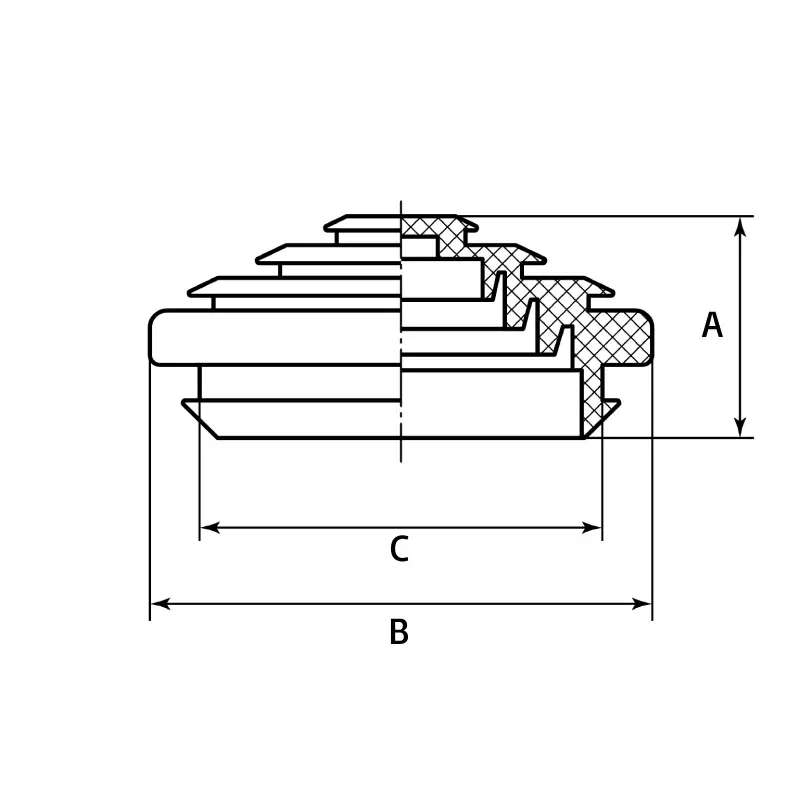

Size Chart
| Nominal Size | RAL 9035 Light Grey |
RAL 9005 Black |
Mounting Diameter Ø C |
Box Piece |
| Code No | Code No | (mm) | ||
| PG.13,5 | RKK.03.254 | RKK.02.254 | 20,5 | 250 |
| PG.16 | RKK.03.255 | RKK.02.255 | 22,5 | 250 |
| PG.16 Flat | RKK.03.355 | RKK.02.355 | 22,5 | 250 |
| PG.21 | RKK.03.256 | RKK.02.256 | 28,5 | 250 |
| PG.29 | RKK.03.257 | RKK.02.257 | 37,5 | 250 |
| PG.36 | RKK.03.258 | RKK.02.258 | 47,0 | 50 |
| PG.42 | RKK.03.259 | RKK.02.259 | 55,0 | 50 |
| *All dimensions are for informational purposes only. Tolerances +/- 5%. | ||||
