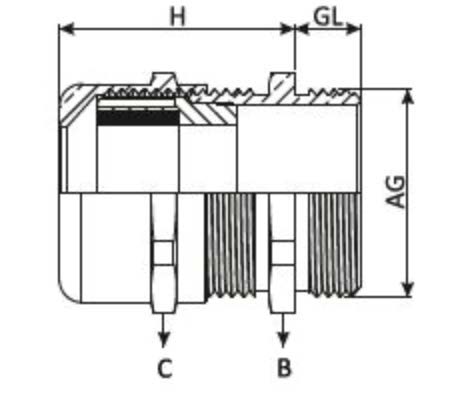

Entry Thread Size | Code Brass | Code Stainless Steel | Cable Range | H | GL | Wrench Size | |||
Inch | mm. | mm | mm | B mm. | C mm. | ||||
M12x1,5 | MBCG01 | MSSCG01 | .12-.26 | 3-6,5 | 22 | 6 | 14 | 14 | |
M16x1,5 | MBCG02 | MSSCG02 | .15-.32 | 4-8 | 23 | 7 | 18 | 17 | |
M20x1,5 | MBCG03 | MSSCG03 | .15-.39 | 4-10 | 26,5 | 8 | 22 | 22 | |
M20x1,5 | MBCG04 | MSSCG04 | .23-.47 | 6-12 | 26,5 | 8 | 22 | 22 | |
M25x1,5 | MBCG05 | MSSCG05 | .39-.55 | 10-14 | 28 | 8 | 27 | 24 | |
M32x1,5 | MBCG06 | MSSCG06 | .51-.71 | 13-18 | 31,5 | 9 | 34 | 30 | |
M40x1,5 | MBCG07 | MSSCG07 | .70-.98 | 18-25 | 38 | 9 | 43 | 40 | |
M50x1,5 | MBCG08 | MSSCG08 | .87-1.26 | 22-32 | 43 | 9 | 55 | 50 | |
M63x1,5 | MBCG09 | MSSCG09 | 1.30-1.73 | 33-44 | 48 | 14 | 68 | 64 | |
M12x1,5 | MBCG10 | MSSCG10 | .12-.26 | 3,5-6 | 22 | 12 | 14 | 14 | |
M16x1,5 | MBCG11 | MSSCG11 | .15-.32 | 4-8 | 23 | 12 | 18 | 17 | |
M20x1,5 | MBCG12 | MSSCG12 | .15-.39 | 4-10 | 26,5 | 12 | 22 | 22 | |
M20x1,5 | MBCG13 | MSSCG13 | .23-.47 | 6-12 | 26,5 | 12 | 22 | 22 | |
M25x1,5 | MBCG14 | MSSCG14 | .39-.55 | 10-14 | 28 | 12 | 27 | 24 | |
M32x1,5 | MBCG15 | MSSCG15 | .51-.71 | 13-18 | 31,5 | 14 | 34 | 30 | |
M40x1,5 | MBCG16 | MSSCG16 | .70-.98 | 18-25 | 38 | 14 | 43 | 40 | |
M50x1,5 | MBCG17 | MSSCG17 | .87-1.26 | 22-32 | 43 | 14 | 55 | 50 | |
M63x1,5 | MBCG18 | MSSCG18 | 1.30-1.73 | 33-44 | 48 | 18 | 70 | ||
64 |

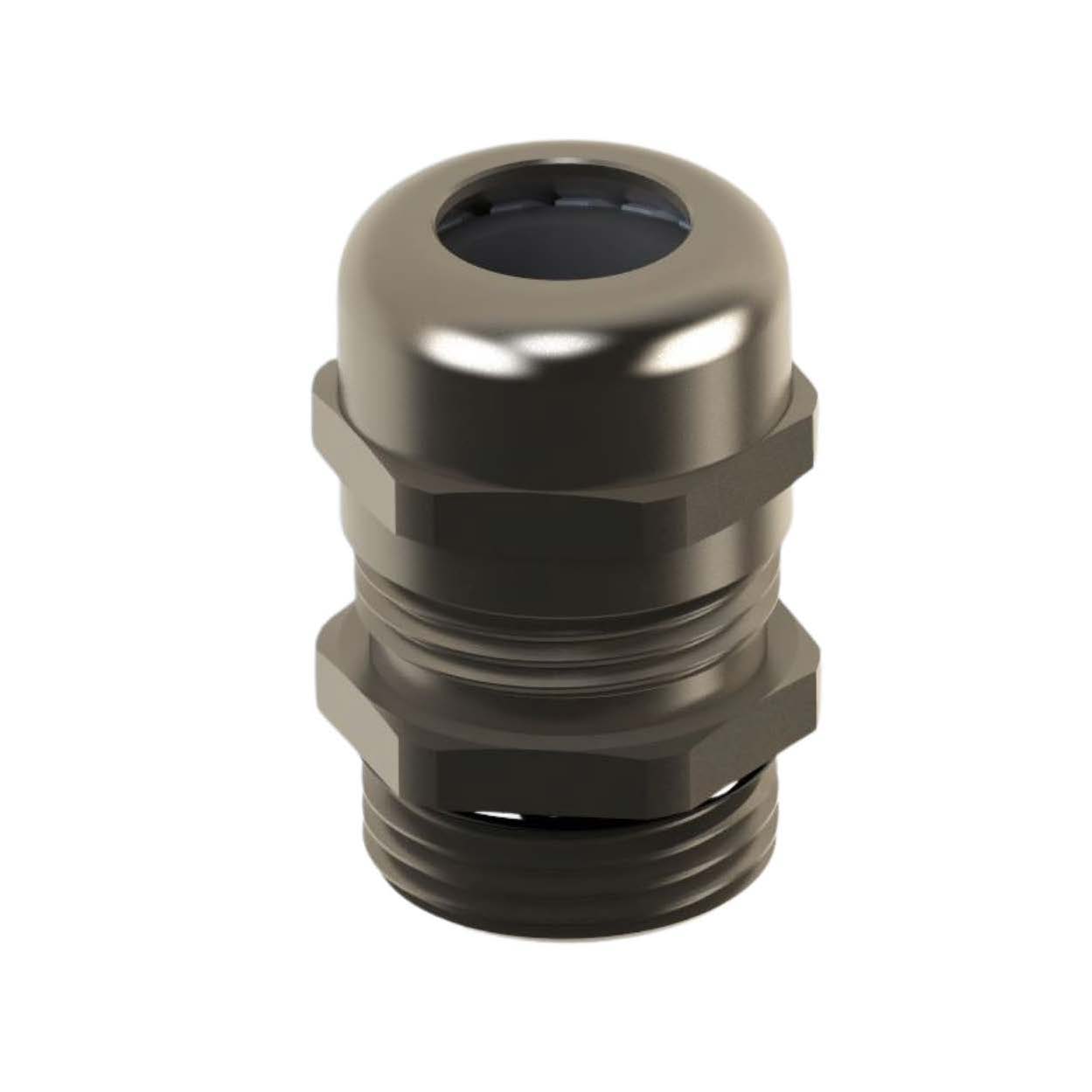

Metallic Cable Glands
SKU: MMCG
₺0,00
Material:
Nickel Plated)Brass / AISI303 or 316L SS for Gland
TPV for Seal
PA6 Nylon for Clamping Insert
NBR for o-ring
Temperature Range: -20°to +100 permanent
-40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Reterdancy: V2 according to UL94
Standards: DIN EN 62444/50262 Metric EN60423
Nickel Plated)Brass / AISI303 or 316L SS for Gland
TPV for Seal
PA6 Nylon for Clamping Insert
NBR for o-ring
Temperature Range: -20°to +100 permanent
-40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Reterdancy: V2 according to UL94
Standards: DIN EN 62444/50262 Metric EN60423
- Metric threaded metallic cable glands
- TPV sealing provide strong Cable Grip, Strain Relief and Superior
Ingress Protection - For standard industrial applications in harsh environments.
- Easy Assembly
- Accessories such as locknut must be ordered separately.
Product Order Detail
