Entry Thread Size | Light Grey RAL7035 Code | Cable Range | H | GL | Wrench | |
Inch | mm. | mm | mm | mm | ||
NPT 3/8” | NCG01-L | .12-.28 | 3-7 | 32.2 | 15 | 22 |
NPT 3/8” | NCG02-L | .19-.39 | 5-10 | 32.2 | 15 | 22 |
NPT 1/2” | NCG03-L | .20-.35 | 5-9 | 32.4 | 15 | 24 |
NPT 1/2” | NCG04-L | .23-.47 | 6-12 | 32.4 | 15 | 24 |
NPT 1/2” | NCG05-L | .28-47 | 7-12 | 31.9 | 15 | 27 |
NPT 1/2” | NCG06-L | .39-.55 | 10-14 | 31.9 | 15 | 27 |
NPT 3/4” | NCG07-L | .35-.63 | 9-16 | 38.4 | 15 | 33 |
NPT 3/4” | NCG08-L | .51-.71 | 13-18 | 38.4 | 15 | 33 |
NPT 1” | NCG09-L | .47-.79 | 12-20 | 43.3 | 18 | 42 |
NPT 1” | NCG010-L | .70-.98 | 18-25 | 43.3 | 18 | 42 |

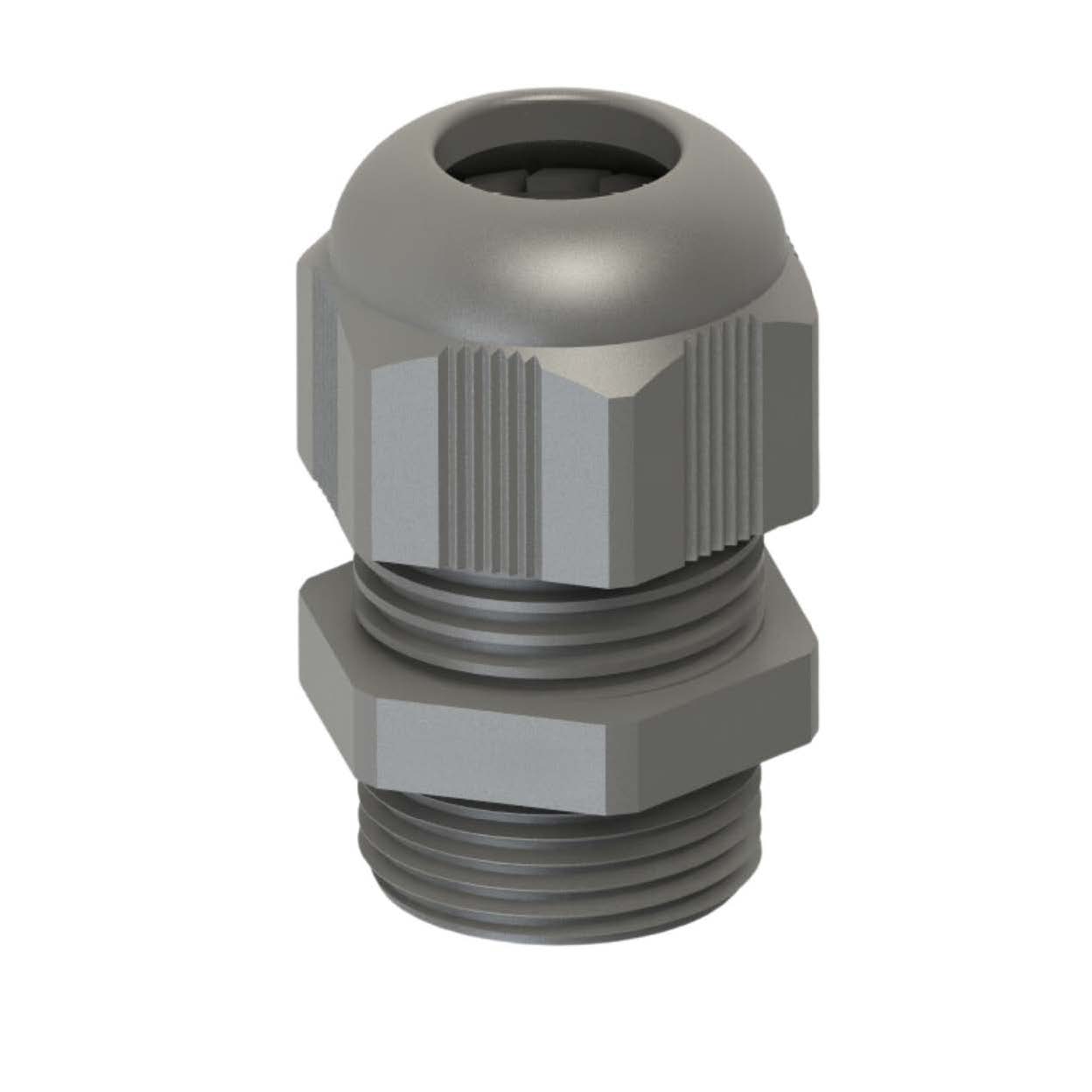

NPT Nylon Cable Glands
SKU: NCG
₺0,00
Material:
PA6 Nylon)for Gland
CR for Seal
NBR for o-ring (on request) TPV for washer (on request))
Temperature Range: -20°to +100 permanent
up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with o-ring or washer
Flame Reterdancy: V2 according to UL94 / V0 (on request)
Standards: NPT ANSI B1.20.1
PA6 Nylon)for Gland
CR for Seal
NBR for o-ring (on request) TPV for washer (on request))
Temperature Range: -20°to +100 permanent
up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with o-ring or washer
Flame Reterdancy: V2 according to UL94 / V0 (on request)
Standards: NPT ANSI B1.20.1
- Standard NPT threaded nylon cable glands
- CR sealing provide strong Cable Grip, Strain Relief and
Superior Ingress Protection - With its unique provides Anti-Vibration
- Easy Assembly
- Halogen Free
- Accessories such as locknut and o-ring must be ordered separately.
Product Order Detail
