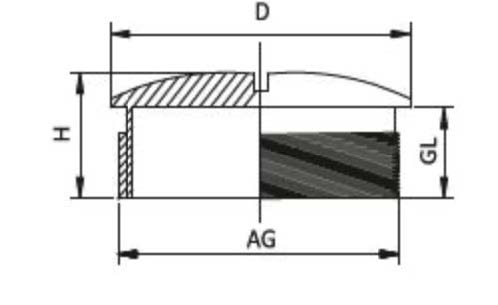

Entry Thread Size | Light Grey RAL7035 Code | H | GL | D |
mm | mm | mm | ||
PG7 | PSP01-L | 8 | 6 | 15 |
PG9 | PSP02-L | 8,2 | 6 | 19 |
PG11 | PSP03-L | 8,5 | 6 | 22 |
PG13,5 | PSP04-L | 8,5 | 6 | 25 |
PG16 | PSP05-L | 8,5 | 6 | 27 |
PG21 | PSP06-L | 12 | 8 | 33 |
PG29 | PSP07-L | 11,3 | 8 | 44 |
PG36 | PSP08-L | 14,3 | 10 | 55 |
M12x1,5 | MSP01-L | 8,5 | 6 | 15 |
M16x1,5 | MSP02-L | 10 | 7 | 20 |
M20x1,5 | MSP03-L | 10 | 7 | 24 |
M25x1,5 | MSP04-L | 14 | 10 | 30 |
M32x1,5 | MSP05-L | 14 | 10 | 37 |
M40x1,5 | MSP06-L | 15 | 10 | 46 |

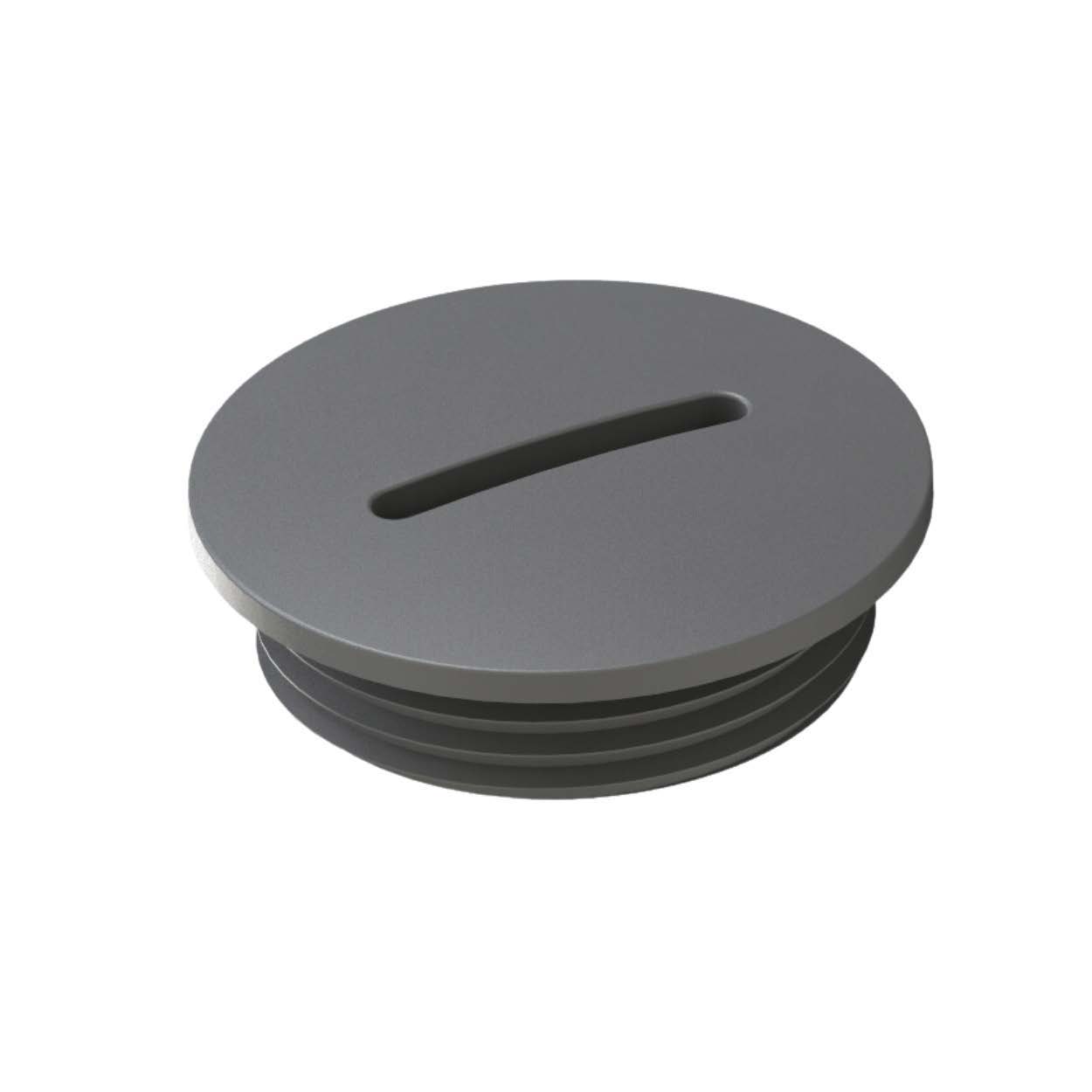

Nylon Stopper Plugs
SKU: NSP
$100.00
Material: PA6 Nylon
Temperature Range: -20°to +100 permanent
Flame Reterdancy: V2 according to UL94
Ingress Protection Rating: IP54 / IP68 with o-ring
Temperature Range: -20°to +100 permanent
Flame Reterdancy: V2 according to UL94
Ingress Protection Rating: IP54 / IP68 with o-ring
- For closing unused holes
- Halogen Free
Product Order Detail
