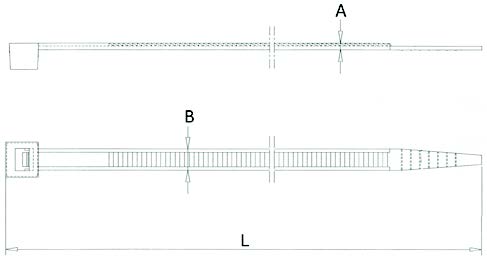

Code White | Dimensions | Tighten Range (max.mm.) | Max. Tensile Strength (kg./f) | Packing Unit (Nylon bag/pc.) | Packing Unit (Box/pc.) | ||
L mm. | B mm. | A mm. | |||||
OSCT1025-W | 100 | 2,5 | 1,0 | 22 | 8 | 100 | 26.000 |
OSCT1525-W | 150 | 2,5 | 1,0 | 35 | 8 | 100 | 20.000 |
OSCT2025-W | 200 | 2,5 | 1,0 | 50 | 8 | 100 | 18.000 |
OSCT2035-W | 100 | 3,5 | 1,2 | 22 | 18 | 100 | 12.000 |
OSCT1435-W | 140 | 3,5 | 1,2 | 31 | 18 | 100 | 12.000 |
OSCT2035-W | 200 | 3,5 | 1,2 | 50 | 18 | 100 | 10.000 |
OSCT2535-W | 250 | 3,5 | 1,2 | 65 | 18 | 100 | 8.000 |
OSCT2835-W | 280 | 3,5 | 1,2 | 74 | 18 | 100 | 8.000 |
OSCT3735-W | 370 | 3,5 | 1,2 | 98 | 18 | 100 | 6.000 |
OSCT2045-W | 200 | 4,5 | 1,3 | 50 | 22 | 100 | 7.000 |
OSCT2545-W | 250 | 4,5 | 1,3 | 65 | 22 | 100 | 6.000 |
OSCT3045-W | 300 | 4,5 | 1,3 | 80 | 22 | 100 | 5.000 |
OSCT3745-W | 370 | 4,5 | 1,3 | 98 | 22 | 100 | 4.000 |
OSCT4345-W | 430 | 4,5 | 1,3 | 120 | 22 | 100 | 3.000 |
OSCT2075-W | 200 | 7,5 | 1,5 | 46 | 55 | 100 | 4.000 |
OSCT3075-W | 300 | 7,5 | 1,5 | 75 | 55 | 100 | 3.000 |
OSCT3775-W | 370 | 7,5 | 1,5 | 98 | 55 | 100 | 2.500 |
OSCT4575-W | 450 | 7,5 | 1,5 | 120 | 55 | 100 | 2.000 |
OSCT5575-W | 550 | 7,5 | 1,5 | 155 | 55 | 100 | 1.500 |
OSCT7575-W | 750 | 7,5 | 1,5 | 220 | 55 | 100 | 1.200 |
OSCT6090-W | 600 | 9,0 | 1,6 | 165 | 80 | 100 | 1.200 |
OSCT7190-W | 710 | 9,0 | 1,6 | 205 | 80 | 100 | 1.200 |
OSCT7690-W | 760 | 9,0 | 1,6 | 220 | 80 | 100 | 1.200 |
OSCT9090-W | 900 | 9,0 | 1,6 | 260 | 80 | 100 | 1.200 |
OSCT1290-W | 1200 | 9,0 | 1,6 | 370 | 80 | 100 | 1.200 |

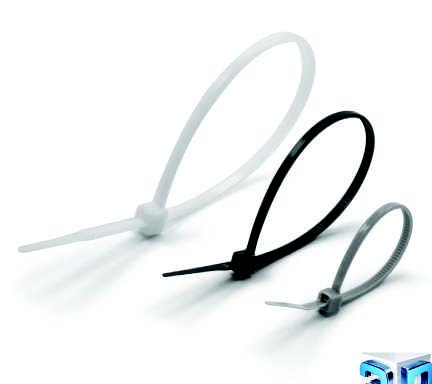

Cable Ties
SKU: OSCT
₺0,00
Material: Polyamide (Nylon) 6.6
Temperature Range: -40° to +85 Operating Temp.
Flame Reterdancy: UL94 V2
Moisture Absorption: 2.7 % (50% relative humidity)
Application Areas: Electricity Industry, Industrial Wiring,
Automotive, Energy Industry, Building & Construction
Temperature Range: -40° to +85 Operating Temp.
Flame Reterdancy: UL94 V2
Moisture Absorption: 2.7 % (50% relative humidity)
Application Areas: Electricity Industry, Industrial Wiring,
Automotive, Energy Industry, Building & Construction
Product Order Detail
