Entry Thread Size | Code Brass |
| Cable Range | H | GL | Wrench | ||
Inch | mm. | mm | mm | mm. | ||||
PG7 | PBCG01 | PSSCG01 | .12-.26 | 3-6,5 | 22 | 6 | 14 | |
PG9 | PBCG02 | PSSCG02 | .15-.32 | 4-8 | 23 | 6 | 17 | |
PG11 | PBCG03 | PSSCG03 | .19-.39 | 5-10 | 24,5 | 6 | 20 | |
PG13,5 | PBCG04 | PSSCG04 | .15-.39 | 4-10 | 26,5 | 6,5 | 22 | |
PG13,5 | PBCG05 | PSSCG05 | .23-.47 | 6-12 | 26,5 | 6,5 | 22 | |
PG16 | PBCG06 | PSSCG06 | .39-.55 | 10-14 | 28 | 6,5 | 24 | |
PG21 | PBCG07 | PSSCG07 | .51-.71 | 13-18 | 31,5 | 7 | 30 | |
PG29 | PBCG08 | PSSCG08 | .70-.98 | 18-25 | 38 | 8 | 40 | |
PG36 | PBCG09 | PSSCG09 | .87-1.26 | 22-32 | 43 | 10 | 50 | |
PG42 | PBCG10 | PSSCG10 | 1.18-1.49 | 30-38 | 47 | 12 | 57 | |
PG48 | PBCG11 | PSSCG11 | 1.30-1.73 | 33-44 | 48 | 14 | 64 | |
PG7 | PBCG12 | PSSCG12 | .12-.26 | 3,5-6 | 22 | 10 | 14 | |
PG9 | PBCG13 | PSSCG13 | .15-.32 | 4-8 | 23 | 10 | 17 | |
PG11 | PBCG14 | PSSCG14 | .19-.39 | 5-10 | 24,5 | 10 | 20 | |
PG13,5 | PBCG15 | PSSCG15 | .15-.39 | 4-10 | 26,5 | 10 | 22 | |
PG13,5 | PBCG16 | PSSCG16 | .23-.47 | 6-12 | 26,5 | 10 | 22 | |
PG16 | PBCG17 | PSSCG17 | .39-.55 | 10-14 | 28 | 10 | 24 | |
PG21 | PBCG18 | PSSCG18 | .51-.71 | 13-18 | 31,5 | 12 | 30 | |
PG29 | PBCG19 | PSSCG19 | .70-.98 | 18-25 | 38 | 12 | 40 | |
PG36 | PBCG20 | PSSCG20 | .87-1.26 | 22-32 | 43 | 14 | 50 | |
PG42 | PBCG21 | PSSCG21 | 1.18-1.49 | 30-38 | 47 | 18 | 60 | |
PG48 | PBCG22 | PSSCG22 | 1.30-1.73 | 33-44 | 48 | 18 | 65 |

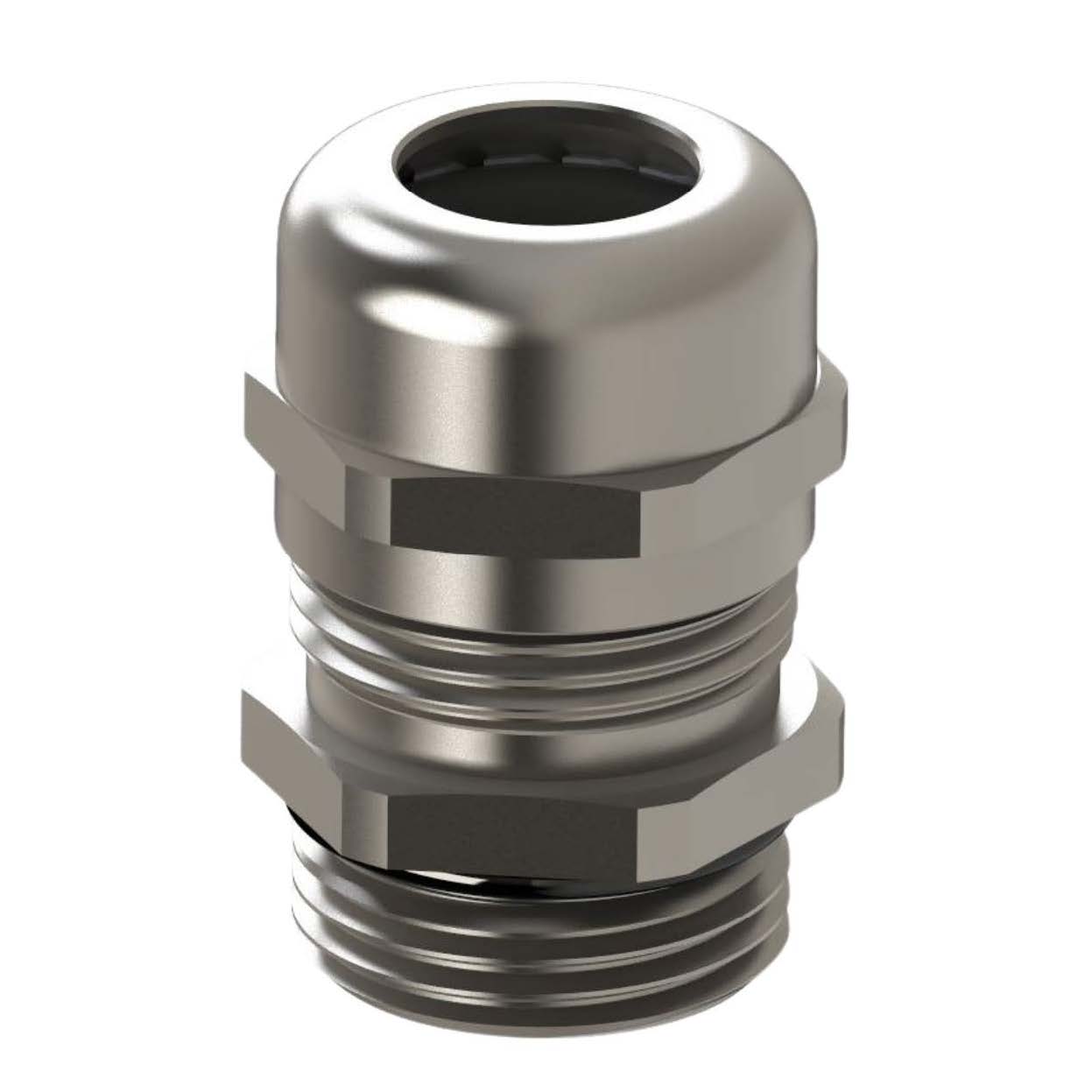

PG Metallic Cable Glands
SKU: PGMCG
₺0,00
Material:
Nickel Plated)Brass / AISI303 or 316L SS for Gland
TPV for Seal
PA6 Nylon for Clamping Insert
NBR for o-ring
Temperature Range: -20°to +100 permanent
-40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Reterdancy: V2 according to UL94
Standards: DIN EN 62444/50262 PG DIN40430
Nickel Plated)Brass / AISI303 or 316L SS for Gland
TPV for Seal
PA6 Nylon for Clamping Insert
NBR for o-ring
Temperature Range: -20°to +100 permanent
-40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Reterdancy: V2 according to UL94
Standards: DIN EN 62444/50262 PG DIN40430
- PG threaded metallic cable glands
- TPV sealing provide strong Cable Grip, Strain Relief and Superior
Ingress Protection - For standard industrial applications in harsh environments.
- Easy Assembly
- Accessories such as locknut must be ordered separately.
