Multi-Purpose Terminals

SKU: MPT

$0,00

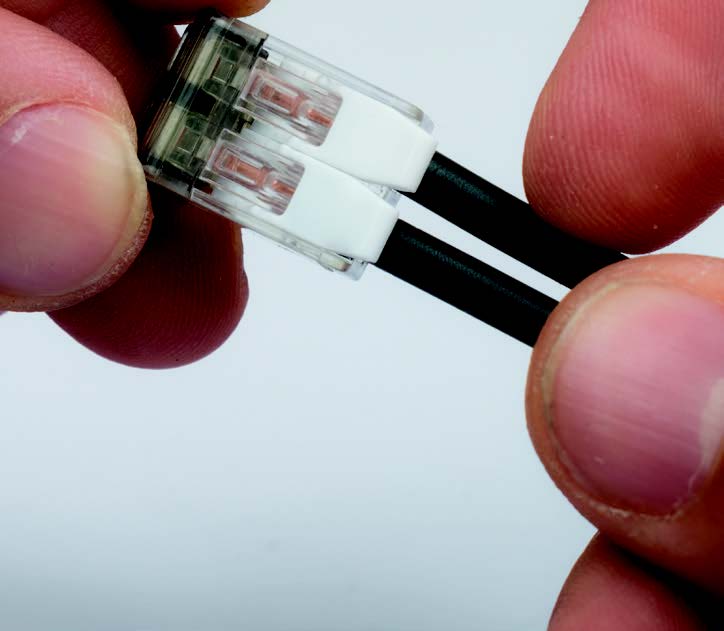

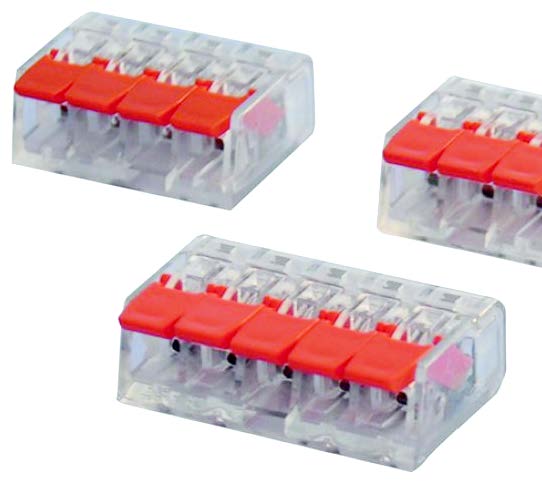

Multi-Purpose Terminals

Rated Current:
32A
Rated Voltage: 450 V
Temperature Range: -40° to +105



Bi-Metallic Cable Lugs

Material: Al-Cu
Tensile Grade: 110 MPa
Temperature Range: -40° to +100

Attachments

Declaration of Conformity

Product Order Detail

Multi-Purpose Terminals

Code Cable Section mm2 Conductors Packing Unit (pc.)
OMPT-2 0,14 – 4 mm2 2 100
OMPT-3 3 100
OMPT-4 4 50
OMPT-5 5 50

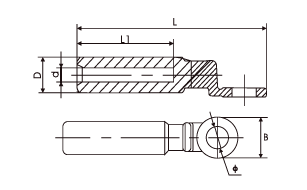

Bi-Metallic Cable Lugs

Code Cable Section mm2 Hole Dia. Dimensions Packing Unit (pc.)
d D L1 L B
OBMCL16 16 M10 5,5 16,0 43,0 85,0 21,0 80
OBMCL25 25 M11 6,5 16,0 43,0 85,0 21,0 80
OBMCL35 35 M12 8,0 16,0 43,0 85,0 21,0 80
OBMCL50 50 M12 9,0 20,0 43,0 90,0 25,6 60
OBMCL70 70 M12 11,0 20,0 43,0 90,0 25,6 60
OBMCL95 95 M12 12,5 20,0 43,0 90,0 25,6 60
OBMCL120 120 M12 13,7 25,0 59,0 115,0 30,0 30
OBMCL150 150 M12 15,5 25,0 59,0 115,0 30,0 30
OBMCL185 185 M12 17,0 32,0 60,0 122,0 35,0 15
OBMCL240 240 M12 19,5 32,0 60,0 122,0 35,0 15
OBMCL300 300 M12 23,5 34,0 65,0 127,0 35,0 15
OBMCL400 400 M12 26,0 40,0 90,0 160,0 36,0 5
