Entry Thread Size | Light Grey RAL7035 Code | Cable Range | H | GL | Wrench | |
Inch | mm. | mm | mm | mm | ||
PG7 | PCG01-L | .12-.26 | 3-6,5 | 24 | 8 | 15 |
PG9 | PCG02-L | .15-.32 | 4-8 | 28 | 8 | 19 |
PG11 | PCG03-L | .19-.39 | 5-10 | 29 | 8 | 22 |
PG13,5 | PCG04-L | .15-.39 | 4-10 | 29 | 9 | 24 |
PG13,5 | PCG05-L | .23-.47 | 6-12 | 29 | 9 | 24 |
PG16 | PCG06-L | .39-.55 | 10-14 | 33 | 9 | 27 |
PG21 | PCG07-L | .35-.67 | 9-17 | 38 | 11 | 33 |
PG21 | PCG08-L | .51-.71 | 13-18 | 38 | 11 | 33 |
PG29 | PCG09-L | .70-.98 | 18-25 | 41 | 11 | 42 |
PG36 | PCG10-L | .87-1.26 | 22-32 | 51 | 13 | 53 |
PG42 | PCG11-L | 1.18-1.49 | 30-38 | 55 | 13 | 60 |
PG48 | PCG12-L | 1.33-1.73 | 34-44 | 55 | 14 | 65 |

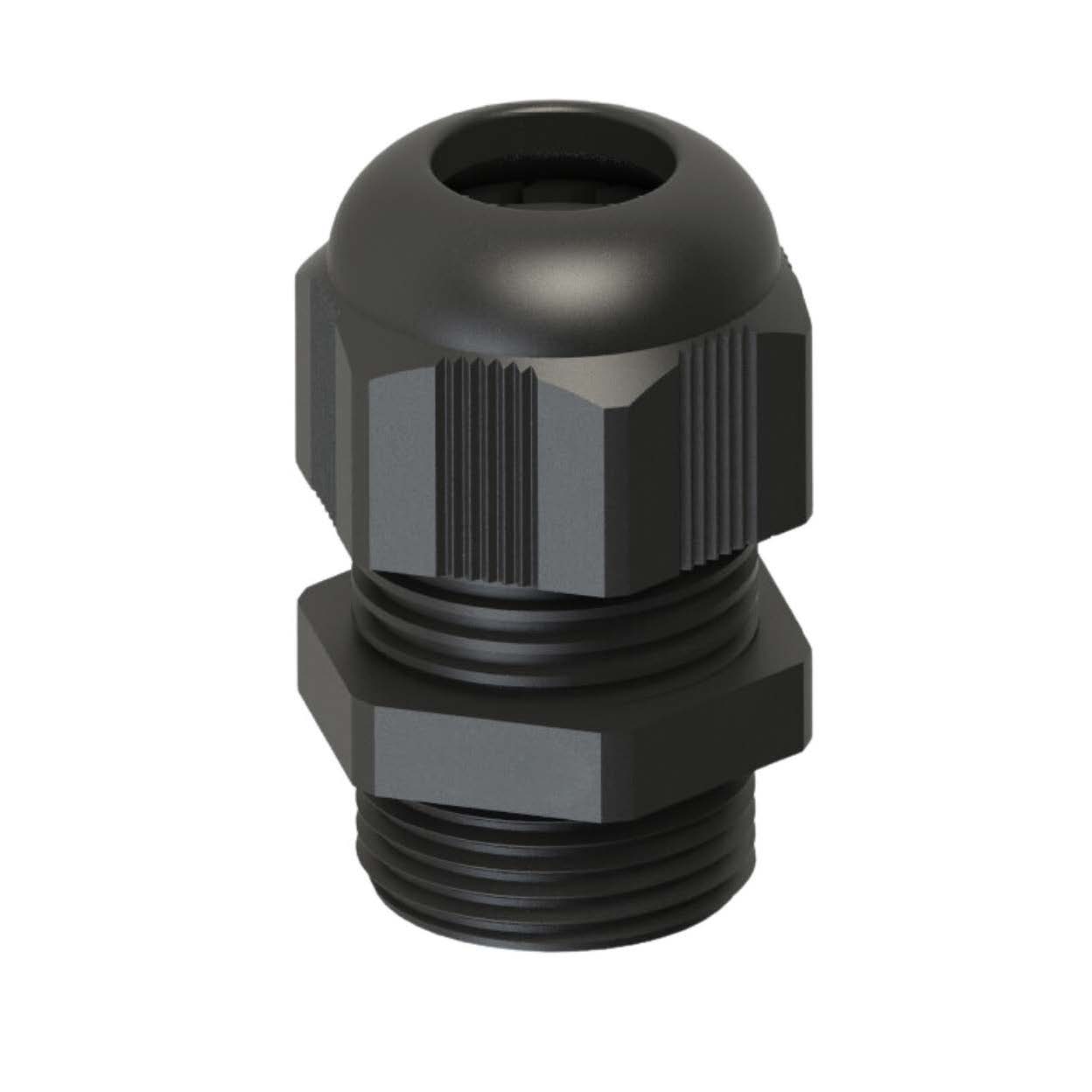

PG Nylon Cable Glands
SKU: PCG
₺0,00
Material:
PA6 Nylon)for Gland
TPV for Seal
NBR for o-ring (on request) TPV for washer (on request)
Temperature Range: -20°to +100 permanent
up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with o-ring or washer
Flame Reterdancy: V2 according to UL94 / V0 (on request)
Standards: EEN50262 PG DIN40430
- Standard PG threaded nylon cable glands
- TPV sealing provide strong Cable Grip, Strain Relief and Superior
Ingress Protection - With its unique Anti-Click design, provides Anti-Vibration
- Easy Assembly
- Halogen Free
- Accessories such as locknut and o-ring must be ordered separately.
Product Order Detail
