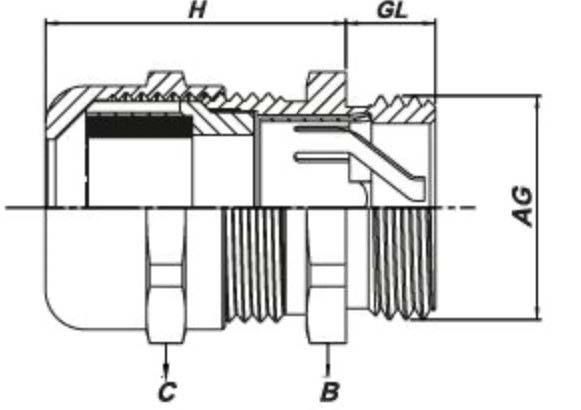

Entry Thread Size | Code Brass | Code Stainless Steel | Cable Range | H | GL | Wrench Size | ||
Inch | mm. | mm | mm | B mm. | C mm. | |||
M12x1,5 | MBEMCG12 | MSSEMCG12 | .12-.26 | 3-6,5 | 26 | 6 | 17 | 17 |
M16x1,5 | MBEMCG13 | MSSEMCG13 | .15-.32 | 4-8 | 23 | 7 | 18 | 17 |
M20x1,5 | MBEMCG14 | MSSEMCG14 | .23-.47 | 6-12 | 26,5 | 8 | 22 | 22 |
M25x1,5 | MBEMCG15 | MSSEMCG15 | .39-.55 | 10-14 | 28 | 8 | 27 | 24 |
M32x1,5 | MBEMCG16 | MSSEMCG16 | .51-.71 | 13-18 | 31,5 | 9 | 34 | 30 |
M40x1,5 | MBEMCG17 | MSSEMCG17 | .70-.98 | 18-25 | 38 | 9 | 43 | 40 |
M50x1,5 | MBEMCG18 | MSSEMCG18 | .87-1.26 | 22-32 | 43 | 9 | 55 | 50 |
M63x1,5 | MBEMCG19 | MSSEMCG19 | 1.30-1.73 | 33-44 | 48 | 14 | 68 | 64 |
M75x1,5 | MBEMCG20 | MSSEMCG20 | 1.97-2.48 | 50-63 | 58 | 20 | 90 | 90 |
M80x2 | MBEMCG21 | MSSEMCG21 | 1.97-2.48 | 50-63 | 58 | 20 | 90 | 90 |
M90x2 | MBEMCG22 | MSSEMCG22 | 2.36-2.76 | 60-70 | 61 | 20 | 100 | 100 |

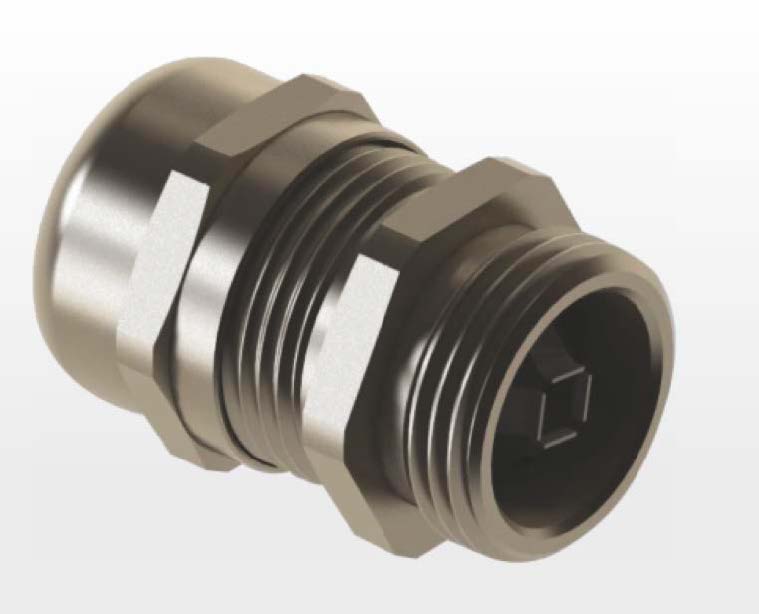

Metallic EMC Cable Glands
SKU: MECG
₺0,00
Material:
Nickel Plated)Brass / AISI303 or 316L SS for Gland
TPV for Seal, AISI301 SS for EMC Spring
PA6 Nylon for Clamping Insert
NBR for o-ring
Temperature Range: -20°to +100 permanent
-40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Reterdancy: V2 according to UL94
Standards: DIN EN 62444/50262 Metric EN60423
- PG / Metric / NPT threaded EMC cable glands
- TPV sealing provide strong Cable Grip, Strain Relief and Superior
Ingress Protection - Long-lasting contact by high definition contact spring
- Easy Assembly
- Excellent Shielding
- Accessories such as locknut must be ordered separately.
